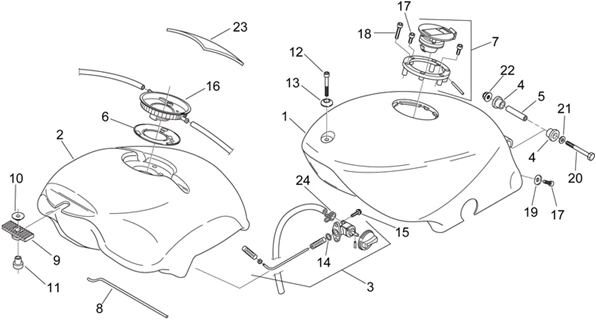

Chassis : 28.10 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/272/RS_125_1999-2005_28.10.PNG)
1 |
AP8139125 - CACH-RES.ESS.NOIR A.; More informationQuantity required : 1 |
||||||
|
1 |
AP8139769 - CACH-RES.ESS.BL.FUM.; More informationQuantity required : 1 |
||||||
|
1 |
AP8148664 - CACH-RES.ESS.NOIR A.; More informationQuantity required : 1 |
||||||
|
1 |
AP8149024 - CACHE-RESERVOIR, GRIS N.; More informationQuantity required : 1 |
||||||
|
1 |
AP8149898 - CACHE-RESERVOIR, GRIS S.; More informationQuantity required : 1 |
||||||
|
1 |
AP8158735 - CACHE-RESERVOIR, NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8158950 - CACHE-RESERVOIR, SILVER; More informationQuantity required : 1 |
||||||
|
1 |
AP8168616 - CACHE-RESERVOIR, NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8168711 - CACHE-RESERVOIR, GRIS; More informationQuantity required : 1 |
||||||
|
1 |
AP8178562 - COPRISERBATOIO BENZ.V.NERO A. More informationQuantity required : 1 |
||||||
|
1 |
AP8178828 - COPRISERBATOIO V.BIANCO APR. More informationQuantity required : 1 |
||||||
|
1 |
AP8179107 - COPRISERBATOIO BENZ.V.NERO APR More informationQuantity required : 1 |
||||||
|
1 |
AP8268390 - COPRISERBATOIO BENZ.V.ROSSO FL More informationQuantity required : 1 |
||||||
|
2 |
AP8139124 - RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/3/3/img/45233.jpg)
3 |
FUEL TAP "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO 1999>2005 -AP8102819- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/1/img/46631.jpg)
4 |
AP8120709 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/9/img/50959.jpg)
5 |
SPACER- FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 AF1 -AP8152153- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/4/1/img/71041.jpg)
6 |
975608 - JOINT More informationQuantity required : 1 |
||||||
|
7 |
B044454 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
7 |
AP8158164 - BOUCHON RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
|
7 |
Bouchon réservoir essence |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/8/5/img/46785.jpg)
8 |
AP8121324 - TIGE OUV. RESERVOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
9 |
AP8120557 - CAOUTCHOUC RESERV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/5/img/71435.jpg)
10 |
AP8121114 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/1/img/57001.jpg)
11 |
AP8221106 - DOUILLE LEVIER FREIN AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
12 |
AP8150202 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/9/img/71489.jpg)
13 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, 1000 CAPONORD/MOTO-GUZZI 1200 STELVIO -AP8121819- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/4/9/img/46649.jpg)
14 |
AP8120798 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
15 |
AP8152272 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
16 |
AP8102676 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/9/img/71819.jpg)
17 |
AP8150050 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/1/img/71831.jpg)
18 |
AP8150176 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
19 |
AP8150248 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/6/img/50856.jpg)
20 |
SCREW - FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA RS 50-125 1999>2010/SCREW FOR SPIDER PLATE- APRILIA SL 1000 FALCO 2000>2003, TUONO 1000 2002>2005 -AP8150314- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
21 |
AP8150014 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
22 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
23 |
AP8117073 - ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/0/img/72130.jpg)
24 |
AP8201358 - COLLIER More informationQuantity required : 1 |
