Vehicle Exploded View - APRILIA RS 125 Replica 4T E4 ABS 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

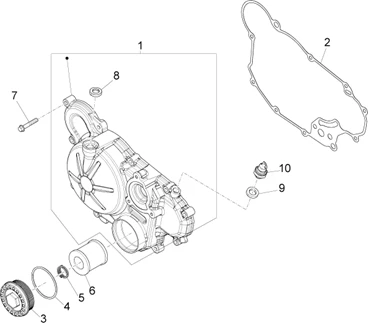

Moteur : 03.220 COUVERCLE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/856/RS_125_Replica_4T_E4_ABS_2019_(EMEA)_03.220.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/4/6/9/img/145469.jpg)
1 |
1A005889 - COUVERCLE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/8/1/img/70681.jpg)
2 |
GASKET FOR CLUTCH COVER "PIAGGIO GENUINE PART" APRILIA 125 RX 2018>, SX 2018>, RS 2011>, TUONO 2017> -878241 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/1/9/img/69619.jpg)
3 |
OIL FILTER COVER "PIAGGIO GENUINE PART" 350 BEVERLY/APRILIA 125 RS, RX, SX, 450-550 RXV, SXV -851295 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/2/0/img/72620.jpg)
4 |
O'RING GASKET FOR OIL FILTER COVER "PIAGGIO GENUINE PART" 350 BEVERLY, X10/APRILIA125 RS, RX, SX -AP9150355- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/8/img/72618.jpg)
5 |
OIL FILTER FIXING SPRING "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, RX, SX, 450 RXV, SXV -AP9150167- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/8/img/70518.jpg)
6 |
OIL FILTER "PIAGGIO GENUINE PART" APRILIA 125 RS4 2011>, TUONO 2017> -874081 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
7 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
8 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/2/1/img/72621.jpg)
9 |
WASHER (10,5X17X1,5) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER+ MOTO -AP9150472 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
10 |
SENSOR FOR OIL PRESSURE "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER AND MOTORBIKES (WITH ADAPTATOR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT) -1D001138 More informationQuantity required : 1 |
