Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

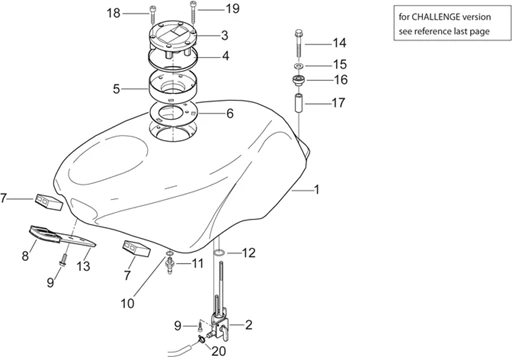

Chassis : 28.10 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.10.PNG)
1 |
Réservoir essence peint bleu; |
||||||
|
1 |
AP8139380 - RESERVOIR NOIR APR.; More informationQuantity required : 1 |
||||||
|
1 |
Réservoir ess., bleu Fumi; |
||||||
|
1 |
Réservoir noir Apr.; |
||||||
|
1 |
AP8149014 - RESERVOIR GRIS NIK; More informationQuantity required : 1 |
||||||
|
1 |
Sous-rep-pieds, gris Sil.; |
||||||
|
1 |
Réservoir silver; |
||||||
|
2 |
AP8102360 - ROBINET ESSENCE More informationQuantity required : 1 |
||||||
|
3 |
AP8102435 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
3 |
AP8104386 - BOUCHON RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/0/img/71420.jpg)
4 |
FUEL CAP SEAL GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120893 More informationQuantity required : 1 |
||||||
|
5 |
AP8102526 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/6/img/71186.jpg)
5 |
CHAMBER FOR FUEL CAP "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, FALCO, FUTURA, TUONO, CAPONORD, 250 RS, 650 PEGASO -AP8102535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/1/img/71421.jpg)
6 |
FUEL TANK GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120894- More informationQuantity required : 1 |
||||||
|
7 |
Caoutchouc lat.rés. |
||||||
|
8 |
Caoutchouc réserv. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/2/img/50942.jpg)
9 |
AP8152040 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
10 |
RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
11 |
2B001203 - CAOUTCHOUC AVEC INSERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/7/7/img/46677.jpg)
12 |
AP8120869 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
13 |
AP8134322 - SUPPORT AV RESERV.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/6/img/71946.jpg)
14 |
SCREW - FLANGE -AP8152284 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
15 |
AP8150015 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/9/img/56839.jpg)
16 |
AP8220192 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/3/4/img/46934.jpg)
17 |
AP8121764 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/9/img/71819.jpg)
18 |
AP8150050 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/1/img/71831.jpg)
19 |
AP8150176 - VIS More informationQuantity required : 3 |
||||||
|
20 |
AP8102525 - COLLIER ROBINET More informationQuantity required : 1 |
