Vehicle Exploded View - APRILIA RS 125 RS4 125 4T 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

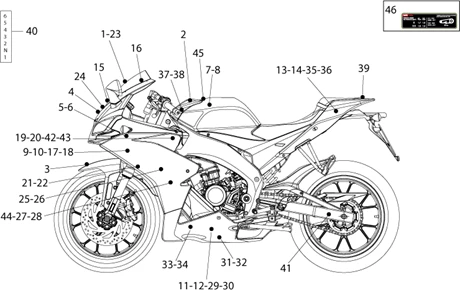

Carrosserie : 02.190 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.190.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/0/9/img/42309.jpg)
1 |
895335 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/6/7/5/img/37675.jpg)
2 |
2B000051 - DECALCO More informationQuantity required : 1 |
||||||
2 |
899549 - DECALCO More informationQuantity required : 1 |
||||||
|
2 |
899550 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/7/0/img/43270.jpg)
3 |
899867 - DECALCO More informationQuantity required : 1 |
||||||
|
3 |
B045793 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/7/1/img/43271.jpg)
4 |
DECAL- FRONT FAIRING GLASS "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>2016 -899868- More informationQuantity required : 1 |
||||||
|
4 |
B045794 - DECALCO More informationQuantity required : 1 |
||||||
|
5 |
893763 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/0/1/5/img/42015.jpg)
6 |
893764 - DECALCO More informationQuantity required : 1 |
||||||
|
7 |
2H000141 - DECALCO More informationQuantity required : 1 |
||||||
|
7 |
899869 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/1/5/img/62615.jpg)
7 |
B045795 - DECALCO More informationQuantity required : 1 |
||||||
|
8 |
2H000142 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/7/3/img/43273.jpg)
8 |
DECAL- ON FUEL TANK "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -899870- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/1/6/img/62616.jpg)
8 |
B045796 - DECALCO More informationQuantity required : 1 |
||||||
|
9 |
899871 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/8/0/img/43280.jpg)
9 |
DECAL - ON RIGHT FLANK "PIAGGIO GENUINE PART" APRILIA 50-125 RS-4 2011> -899877- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/1/4/img/62514.jpg)
9 |
B045272 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/1/7/img/62617.jpg)
9 |
B045797 - DECALCO More informationQuantity required : 1 |
||||||
|
9 |
B046038 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/9/5/6/img/37956.jpg)
9 |
2H000145 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/9/5/7/img/37957.jpg)
10 |
DECAL "RS-4" "PIAGGIO GENUINE PART" APRILIA 50-125 RS-4 2011>2013 -2H000146- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/7/5/img/43275.jpg)
10 |
DECAL "RS4" "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -899872 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/8/1/img/43281.jpg)
10 |
DECAL - ON LEFT FLANK "PIAGGIO GENUINE PART" APRILIA 50-125 RS-4 2011> -899878- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/1/5/img/62515.jpg)
10 |
B045273 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/1/8/img/62618.jpg)
10 |
B045798 - DECALCO More informationQuantity required : 1 |
||||||
|
10 |
B046039 - DECALCO More informationQuantity required : 1 |
||||||
|
11 |
899873 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/4/7/img/62147.jpg)
11 |
DECO - ON LEFT SKID PLATE "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>2013 -B043702- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/1/8/img/62518.jpg)
11 |
B045276 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/1/9/img/62619.jpg)
11 |
B045799 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/7/7/img/43277.jpg)
12 |
899874 - DECALCO More informationQuantity required : 1 |
||||||
|
12 |
DECO - ON RIGHT SKID PLATE "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>2013 -B043703- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/1/9/img/62519.jpg)
12 |
B045277 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/2/0/img/62620.jpg)
12 |
B045800 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
899875 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
DECAL "RS4" ON RIGHT REAR FAIRING "PIAGGIO GENUINE PART" 50-125 RS 2011>2016 -899879- More informationQuantity required : 1 |
||||||
|
13 |
STICKER "RS4" "PIAGGIO GENUINE PART" APRILIA RS4 50-125 2011>2013 (FOR SUNNY YELLOW BIKE) -B046040- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/7/9/img/43279.jpg)
14 |
899876 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/8/3/img/43283.jpg)
14 |
DECAL "RS4" ON LEFT REAR FAIRING "PIAGGIO GENUINE PART" 50-125 RS 2011>2016 -899880- More informationQuantity required : 1 |
||||||
|
14 |
B046041 - DECALCO More informationQuantity required : 1 |
||||||
|
15 |
2H000138 - DECALCO More informationQuantity required : 1 |
||||||
|
15 |
B043688 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
2H000139 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/0/5/5/img/43055.jpg)
16 |
898814 - DECALCO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/3/9/img/62139.jpg)
17 |
B043694 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
B045274 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/4/0/img/62140.jpg)
18 |
B043695 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/1/7/img/62517.jpg)
18 |
B045275 - DECALCO More informationQuantity required : 1 |
||||||
|
19 |
B043696 - DECALCO More informationQuantity required : 1 |
||||||
|
20 |
B043697 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/9/5/4/img/37954.jpg)
21 |
DECAL-RIGHT SIDE "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -2H000143- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/3/7/img/62137.jpg)
21 |
DECAL- "ENTOURAGE" RIGHT PANEL "PIAGGIO GENUINE PART" APRILIA 50 RS 2011> -B043692- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/1/2/img/62512.jpg)
21 |
DECAL - ON RIGHT FLANK "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2012> REPLICA SBK -B045270 More informationQuantity required : 1 |
||||||
|
22 |
2H000144 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/3/8/img/62138.jpg)
22 |
DECAL- "ENTOURAGE" LEFT PANEL "PIAGGIO GENUINE PART" APRILIA 50 RS 2011> -B043693 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/1/3/img/62513.jpg)
22 |
DECAL-ON LEFT FLANK "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2012> REPLICA SBK -B045271- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/0/1/img/62201.jpg)
23 |
DECAL- FRONT FAIRING GLASS "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>2013 B044199- More informationQuantity required : 1 |
||||||
|
23 |
B045268 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/9/5/1/img/37951.jpg)
24 |
DECAL "NUMBERPLATE" "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>2013 -2H000140- More informationQuantity required : 1 |
||||||
|
24 |
B043689 - DECALCO More informationQuantity required : 1 |
||||||
|
24 |
B045269 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/4/3/img/62143.jpg)
25 |
DECAL-LEFT SIDE REPLICA-ITALIA "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -B043698 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/4/4/img/62144.jpg)
26 |
B043699 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/4/5/img/62145.jpg)
27 |
B043700 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/4/6/img/62146.jpg)
28 |
B043701 - DECALCO More informationQuantity required : 1 |
||||||
|
29 |
2H000148 - DECALCO More informationQuantity required : 1 |
||||||
|
30 |
2H000149 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/4/9/img/62149.jpg)
31 |
B043704 - DECALCO More informationQuantity required : 1 |
||||||
|
31 |
B045280 - DECALCO More informationQuantity required : 1 |
||||||
|
32 |
B043705 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/2/3/img/62523.jpg)
32 |
B045281 - DECALCO More informationQuantity required : 1 |
||||||
|
33 |
B043706 - DECALCO More informationQuantity required : 1 |
||||||
|
33 |
B045278 - DECALCO More informationQuantity required : 1 |
||||||
|
34 |
B043707 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/2/1/img/62521.jpg)
34 |
B045279 - DECALCO More informationQuantity required : 1 |
||||||
|
35 |
2H000150 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/5/3/img/62153.jpg)
35 |
B043708 - DECALCO More informationQuantity required : 1 |
||||||
|
35 |
B045282 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/9/6/2/img/37962.jpg)
36 |
2H000151 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/5/4/img/62154.jpg)
36 |
B043709 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/2/5/img/62525.jpg)
36 |
B045283 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/3/5/img/62135.jpg)
37 |
B043690 - DECALCO More informationQuantity required : 1 |
||||||
|
38 |
B043691 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/0/3/8/img/42038.jpg)
39 |
DECAL- ON REAR COWL "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -893798- More informationQuantity required : 1 |
||||||
|
39 |
B045284 - DECALCO More informationQuantity required : 1 |
||||||
|
40 |
AP8277381 - DECALCO MARCE GIAPPONE More informationQuantity required : 1 |
||||||
|
41 |
B044710 - DECALCO More informationQuantity required : 1 |
||||||
|
42 |
B043887 - DECALCO More informationQuantity required : 1 |
||||||
|
43 |
B043888 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/9/5/8/img/37958.jpg)
44 |
2H000147 - DECALCO More informationQuantity required : 2 |
||||||
|
45 |
B043681 - DECALCO More informationQuantity required : 1 |
||||||
|
46 |
B043836 - DECALCO More informationQuantity required : 1 |
All the exploded views of this vehicle
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013.PNG)
-
00.01 Accessoires
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/no-image-available.jpg)
-
01.010 Chassis
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_01.010.PNG)
-
01.020 Repose-Pieds
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_01.020.PNG)
-
01.030 Béquille
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_01.030.PNG)
-
01.050 Fourche arriere
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_01.050.PNG)
-
02.030 Garde-boue Av.-Embasement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.030.PNG)
-
02.040 Avant carène
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.040.PNG)
-
02.070 Convoyeur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.070.PNG)
-
02.080 Carène lateral
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.080.PNG)
-
02.090 Couvre-réservoir
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.090.PNG)
-
02.100 Carrosserie centrale
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.100.PNG)
-
02.120 Selle
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.120.PNG)
-
02.140 Carrosserie posterieure
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.140.PNG)
-
02.150 Garde-boue Ar.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.150.PNG)
-
02.170 Serrures
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.170.PNG)
-
02.180 Plaquettes
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.180.PNG)
-
02.190 Décalco
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.190.PNG)
-
03.010 Moteur-Groupe complementaire
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.010.PNG)
-
03.030 Carters I
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.030.PNG)
-
03.050 Corps filtre
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.050.PNG)
-
03.060 Corps à papillon
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.060.PNG)
-
03.090 Couvre-culasse
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.090.PNG)
-
03.100 Culasse - soupapes
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.100.PNG)
-
03.130 Distribution cylindre avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.130.PNG)
-
03.150 Cylindre - Piston
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.150.PNG)
-
03.160 Arbre moteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.160.PNG)
-
03.170 Boîte de vitesses / Selecteur / Desmodromique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.170.PNG)
-
03.180 Boîte de vitesses - engrenages
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.180.PNG)
-
03.200 Pompe huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.200.PNG)
-
03.210 Pompe à eau
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.210.PNG)
-
03.220 Couvercle embrayage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.220.PNG)
-
03.230 Embrayage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.230.PNG)
-
03.270 Carter de volant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.270.PNG)
-
03.290 Démarreur / Démarreur électrique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.290.PNG)
-
03.300 Volant magnétique / Allumage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.300.PNG)
-
03.330 Pot d''échappement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_03.330.PNG)
-
04.015 Fourche Av. Paioli
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_04.015.PNG)
-
04.070 Fourche Av. Ming Xing
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_04.070.PNG)
-
04.080 Amortisseur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_04.080.PNG)
-
05.010 Roue Av.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_05.010.PNG)
-
05.020 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_05.020.PNG)
-
06.010 Maît. cyl. frein AV
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_06.010.PNG)
-
06.020 Pince frein avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_06.020.PNG)
-
06.030 Pompe frein arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_06.030.PNG)
-
06.040 Pince frein arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_06.040.PNG)
-
07.010 Direction
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_07.010.PNG)
-
07.020 Guidon - Commandes
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_07.020.PNG)
-
07.030 Commande embrayage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_07.030.PNG)
-
08.010 Feux avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_08.010.PNG)
-
08.020 Instruments
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_08.020.PNG)
-
08.030 Feux arriere
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_08.030.PNG)
-
09.010 Réservoir essence
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_09.010.PNG)
-
10.020 Installation refroidissement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_10.020.PNG)
-
11.010 Circuit electrique AV
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_11.010.PNG)
-
11.030 Circuit electrique arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_11.030.PNG)
