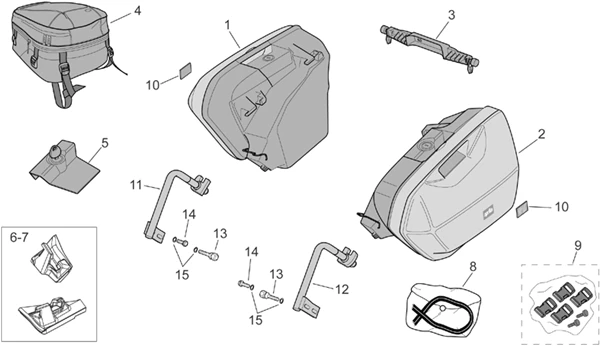

Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003 APRILIA

Chassis : 28.21 SIDE CASES
Side cases
Search
RH suitcase;

1
P2R reference P2R reference
Maker reference Maker reference AP8790258

RH suitcase;

RH suitcase;

1
P2R reference P2R reference
Maker reference Maker reference AP8792178

RH suitcase;

RH suitcase;

1
P2R reference P2R reference
Maker reference Maker reference AP8792180

RH suitcase;

RH suitcase;

1
P2R reference P2R reference
Maker reference Maker reference AP8792182

RH suitcase;

RH suitcase;

1
P2R reference P2R reference
Maker reference Maker reference AP8792233

RH suitcase;

LH suitcase;

2
P2R reference P2R reference
Maker reference Maker reference AP8790259

LH suitcase;

LH suitcase;

2
P2R reference P2R reference
Maker reference Maker reference AP8792179

LH suitcase;

LH suitcase;

2
P2R reference P2R reference
Maker reference Maker reference AP8792181

LH suitcase;

LH suitcase;

2
P2R reference P2R reference
Maker reference Maker reference AP8792183

LH suitcase;

LH suitcase;

2
P2R reference P2R reference
Maker reference Maker reference AP8792234

LH suitcase;

Ressort support;

3
P2R reference P2R reference
Maker reference Maker reference AP8792187

Ressort support;

AP8792156 - HAVRESAC;

4
P2R reference P2R reference 107476
Maker reference Maker reference AP8792156

AP8792156 - HAVRESAC;

More information

Quantity required : 1

Lock;

5
P2R reference P2R reference
Maker reference Maker reference AP8792184

Lock;

Kit accrochage valise D.;

6
P2R reference P2R reference
Maker reference Maker reference AP8792185

Kit accrochage valise D.;

AP8792186 - KIT ACCROCHAGE VALISE G.;

7
P2R reference P2R reference 107478
Maker reference Maker reference AP8792186

AP8792186 - KIT ACCROCHAGE VALISE G.;

More information

Quantity required : 1

AP8792230 - JEU DE JOINTS;

8
P2R reference P2R reference 107482
Maker reference Maker reference AP8792230

AP8792230 - JEU DE JOINTS;

More information

Quantity required : 1

elastic/rubber kit;

9
P2R reference P2R reference
Maker reference Maker reference AP8792188

elastic/rubber kit;

AP8706314 - CATADIOPTRE

10
P2R reference P2R reference 72588
Maker reference Maker reference AP8706314

AP8706314 - CATADIOPTRE

More information

Quantity required : 2

Fixation av.valise D

11
P2R reference P2R reference
Maker reference Maker reference AP8706337

Fixation av.valise D

Fixation av.valise G

12
P2R reference P2R reference
Maker reference Maker reference AP8706338

Fixation av.valise G

AP8706349 - VIS ? ARRACHEMENT

13
P2R reference P2R reference 107335
Maker reference Maker reference AP8706349

AP8706349 - VIS ? ARRACHEMENT

More information

Quantity required : 2

AP8152273 - VIS BRIDE

14
P2R reference P2R reference 71939
Maker reference Maker reference AP8152273

AP8152273 - VIS BRIDE

More information

Quantity required : 2

AP8150272 - RONDELLE ELASTIQUE COURBE

15
P2R reference P2R reference 97084
Maker reference Maker reference AP8150272

AP8150272 - RONDELLE ELASTIQUE COURBE

More information

Quantity required : 4
