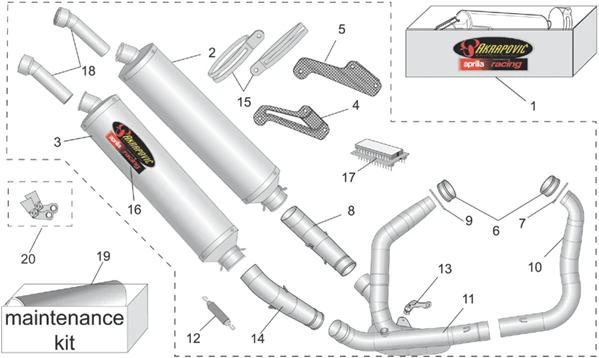

Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Accessoires : 30.05 ACC. - TRANSFORMATION II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/315/RSV_1000_2003_30.05.PNG)
1 |
AP8797006 - KIT COMPL.SCARICHI OMOLOGATI More informationQuantity required : 1 |
||||||
|
2 |
AP8796511 - SILENCIEUX GAUCHE TITANE More informationQuantity required : 1 |
||||||
|
2 |
SILENZIATORE SX OMOLOGATO |
||||||
|
3 |
Silencieux droit titane |
||||||
|
3 |
AP8797157 - SILENZIATORE DX OMOLOGATO More informationQuantity required : 1 |
||||||
|
4 |
SUP. SIL. CARBONE GAUCHE |
||||||
|
5 |
SUP. SLI. CARBONE DROIT |
||||||
|
6 |
AP8796518 - PRISIONNIER More informationQuantity required : 1 |
||||||
|
7 |
AP8796516 - BRIDE CYLINDRE AVANT More informationQuantity required : 1 |
||||||
|
8 |
AP8796509 - RACC COLLECTEUR DROIT More informationQuantity required : 1 |
||||||
|
9 |
BRIDE CYLINDRE ARRIERE |
||||||
|
10 |
AP8796507 - COLL CYLINDRE AV ACIER More informationQuantity required : 1 |
||||||
|
11 |
AP8796508 - COLL CYLINDRE ARR ACIER More informationQuantity required : 1 |
||||||
|
12 |
AP8796519 - RESSORT More informationQuantity required : 8 |
||||||
|
13 |
STAFFA INF.FISS.KIT SCARICHI |
||||||
|
14 |
RACC COLLECTEUR GAUCHE |
||||||
|
15 |
AP8796513 - COLLIER ECHAP More informationQuantity required : 1 |
||||||
|
16 |
STICKERS |
||||||
|
16 |
ETICHETTA AKRAPOVIC/APRILIA |
||||||
|
17 |
AP8797165 - EPROM RSV 01-03 More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
|
18 |
FLANGIA RIDUZ.SCARICO OMOLOG. |
||||||
|
19 |
AP8797158 - KIT REVISIONE PER SCARICHI OM. More informationQuantity required : 2 |
||||||
|
19 |
AP8798001 - KIT REVISIONE SCARICO LIBERO More informationQuantity required : 2 |
||||||
|
20 |
AP8796506 - KITECHAP SBK/REPLICA More informationQuantity required : 1 |
