Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Accessoires : 30.01 ACC. - CYCLISME
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_30.01.PNG)

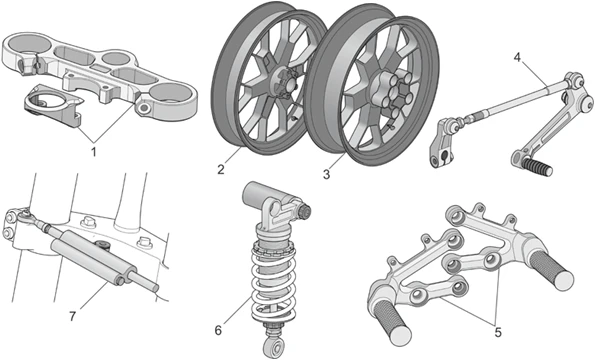

1 |
Plaque sup. fourche |
||||||
|
2 |
Front wheel, magnesium RED |
||||||
|
2 |
ROUE AVANT CPLT |
||||||
|
3 |
896546 - KIT ROUE More informationQuantity required : 1 |
||||||
|
3 |
AP8795044 - CERCHIO POSTERIORE FORGIATO More informationQuantity required : 1 |
||||||
|
4 |
AP8791264 - KIT CAMBIO ROVESCIO More informationQuantity required : 1 |
||||||
|
5 |
AP8793686 - KIT PEDANE REGOLABILI IN ALL. More informationQuantity required : 1 |
||||||
|
6 |
KIT AMMORTIZZATORE POSTERIORE |
||||||
|
6 |
AP8795042 - KIT AMMORTIZZATORE POSTERIORE More informationQuantity required : 1 |
||||||
|
7 |
AP8795040 - KIT AMMORTIZZATORE DI STERZO More informationQuantity required : 1 |
