Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 SP 1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

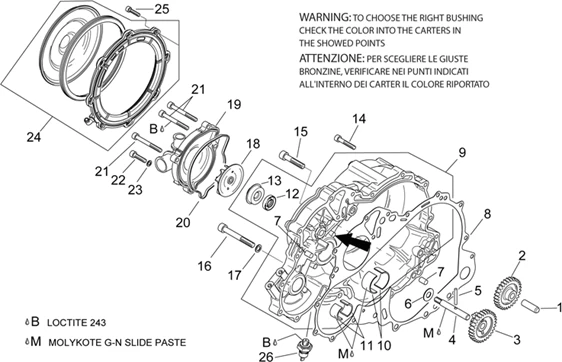

Moteur : 29.55 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/743/RSV_1000_SP_1999_29.55.PNG)
1 |
AP0929930 - PIVOT More informationQuantity required : 1 |
||||||
|
2 |
AP0634500 - PIGNON INTERMEDIAIRE More informationQuantity required : 1 |
||||||
|
3 |
AP0634490 - ENGRENAGE POMPE EAU More informationQuantity required : 1 |
||||||
|
4 |
AP0220412 - ARBRE POMPE A EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/6/3/img/38263.jpg)
5 |
2R000080 - GOUPILLE More informationQuantity required : 1 |
||||||
|
6 |
AP0227685 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
AP0632010 - GOUPILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/6/4/img/44464.jpg)
8 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO, FUTURA, CAPONORD -AP0650330- More informationQuantity required : 1 |
||||||
|
9 |
Couvercle embrayage; |
||||||
|
10 |
AP0233790 - DEMI-COQ.CSS.BR.BLEU More informationQuantity required : 2 |
||||||
|
10 |
AP0233791 - DEMI-COQ.CS.BR.ROUGE More informationQuantity required : 2 |
||||||
|
10 |
AP0233793 - DEMI-COQ.CS.BR.JAUNE More informationQuantity required : 2 |
||||||
|
11 |
AP0233780 - DEMI-COUSSINET More informationQuantity required : 2 |
||||||
|
12 |
AP0650315 - JOINT SPI More informationQuantity required : 1 |
||||||
|
13 |
AP0650370 - ETANCHEITE MECANIQUE POMPE More informationQuantity required : 1 |
||||||
|
14 |
AP0241811 - VIS More informationQuantity required : 11 |
||||||
|
15 |
AP0840681 - VIS More informationQuantity required : 3 |
||||||
|
16 |
AP0841841 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/2/2/img/44622.jpg)
17 |
AP0950141 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
18 |
2R000112 - ROTOR More informationQuantity required : 1 |
||||||
|
19 |
Corps pompe eau |
||||||
|
20 |
AP0650240 - JOINT More informationQuantity required : 1 |
||||||
|
21 |
AP0240331 - VIS More informationQuantity required : 3 |
||||||
|
22 |
AP0840861 - VIS More informationQuantity required : 1 |
||||||
|
23 |
AP0230415 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
24 |
Disque diaph. cpl |
||||||
|
25 |
Vis bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
26 |
SENSOR FOR OIL PRESSURE "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER AND MOTORBIKES (WITH ADAPTATOR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT) -1D001138 More informationQuantity required : 1 |
