Vehicle Exploded View - APRILIA RSV4 1000 RR 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

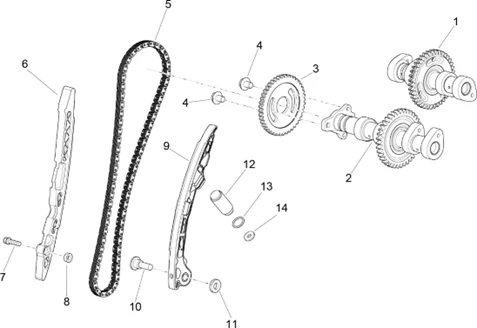

Moteur : 3140 DISTRIBUTION CYLINDRE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/563/RSV4_1000_RR_2015_3140.png)
1 |
Arbre à cames |
||||||
|
2 |
Arbre à cames |
||||||
|
3 |
857546 - COURONNE DISTRIBUTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/0/8/7/img/151087.jpg)
4 |
1A003151 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/6/0/img/42760.jpg)
5 |
TIMING CHAIN "PIAGGIO GENUINE PART" (10,30/7,15) APRILIA 1000 RSV-4 2011>, 1100 RSV-4 2019>, 1000 TUONO V4 2011>, 1100 TUONO V4 2015 -897444 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/9/5/img/108595.jpg)
6 |
2A000559 - PATIN TENDEUR DE CHAINE More informationQuantity required : 1 |
||||||
|
7 |
1A003110 - VIS SPECIALE More informationQuantity required : 1 |
||||||
|
8 |
857477 - DOUILLE More informationQuantity required : 1 |
||||||
|
9 |
GR.RESSORT |
||||||
|
10 |
857094 - VIS SPECIALE M16X1 More informationQuantity required : 1 |
||||||
|
11 |
857096 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
TENDER DE CHAINE DISTRIBUTION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/2/img/69752.jpg)
13 |
O'RING GASKET "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO-V4, PORTER DIESEL -857176 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/7/9/img/62579.jpg)
14 |
TIMING CHAIN TENSIONER WASHER (15X6X2) "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO -B045476 More informationQuantity required : 1 |
