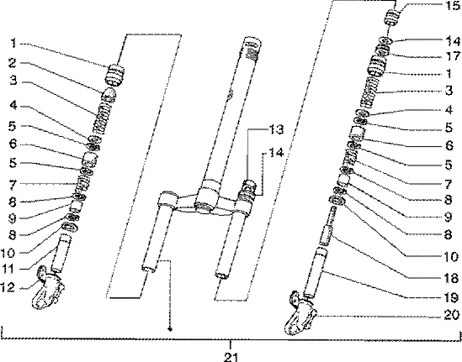

Suspensions-roues : T41 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/657/Runner_50_Poggiali_1998-2005_T41.PNG)
1 |
PROTECTION FOURCHE |
||||||
|
2 |
SILENBLOC |
||||||
|
3 |
561925 - RESSORT More informationQuantity required : 2 |
||||||
|
4 |
BOUCHON |
||||||
|
5 |
561922 - CLIPS More informationQuantity required : 2 |
||||||
|
6 |
BAGUE DE FOURCHE FX |
||||||
|
7 |
RESSORT |
||||||
|
8 |
561919 - CLIPS More informationQuantity required : 4 |
||||||
|
9 |
274468 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/0/img/67050.jpg)
10 |
FORK OIL SEAL "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER -564236- More informationQuantity required : 2 |
||||||
|
11 |
561916 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
12 |
BAS DE FOURCHE |
||||||
|
13 |
ECROU |
||||||
|
14 |
ECROU |
||||||
|
15 |
SILENBLOC |
||||||
|
17 |
ECROU |
||||||
|
18 |
CARTOUCHE |
||||||
|
19 |
TIGE DROITE |
||||||
|
20 |
BAS DE FOURCHE |
||||||
|
21 |
600858 - FOURCHE More informationQuantity required : 1 |
