Vehicle Exploded View - GILERA RUNNER 50 Pure Jet Race 2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

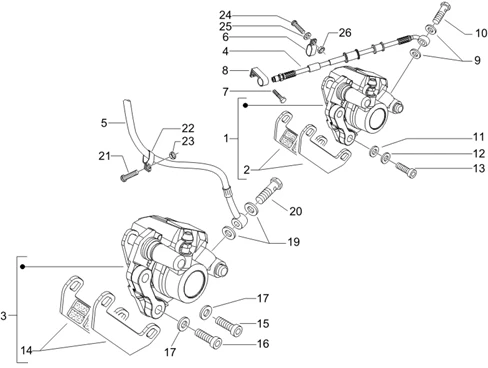

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/157/Runner_50_Pure_Jet_Race_2005_05.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/9/2/img/72992.jpg)
1 |
REAR BRAKE CALIPER "PIAGGIO GENUINE PART" GILERA 50 RUNNER 2005> -CM076701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/0/img/68010.jpg)
2 |
BRAKE PADS - "PIAGGIO GENUINE PART" 50-125 ZIP FRONT, 50-125 LIBERTY FRONT, 50-125 VESPA ET4 FRONT (HENG-TONG) GILERA 50 DNA REAR, RUNNER REAR, NRG REAR (HENG-TONG) (PAIR) -647170 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/0/img/72980.jpg)
3 |
FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" 50-125 FLY 2005>, LIBERTY 2009>, VESPA PRIMAVERA 2013>, VESPA SPRIN 2014>, 125 X-EVO, VESPA GTS/GILERA 50 RUNNER, 125 NEXUS, SR-MAX (HENG-TONG SLX 12') -CM068301 More informationQuantity required : 1 |
||||||
4 |
949652 - TUYAU More informationQuantity required : 1 |
||||||
|
5 |
624166 - TUYAU FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/7/img/65927.jpg)
6 |
216983 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
7 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/8/img/67078.jpg)
8 |
564761 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
9 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
10 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
11 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
12 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
13 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/4/img/68004.jpg)
14 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125 X-EVO FRONT, X8 FRONT, X9 FRONT, 125-300 VESPA GTS FRONT, 400 X-EVO FRONT+REAR, 125 FLY FRONT/GILERA 800 GP REAR/APRILIA 854 SRV REAR, 125-300 SR-MAX FRONT+REAR (PAIR) (HENG-TONG) -647078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
15 |
SCREW - 8X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015792 More informationQuantity required : 1 |
||||||
|
16 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
17 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
|
19 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
|
20 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
21 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/1/img/67101.jpg)
22 |
573918 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
23 |
241936 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
24 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
24 |
B016777 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
25 |
013880 - RONDELLE More informationQuantity required : 1 |
||||||
|
26 |
241936 - ECROU More informationQuantity required : 1 |
All the exploded views of this vehicle
-
