Vehicle Exploded View - GILERA RUNNER 50 Pure Jet SC 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

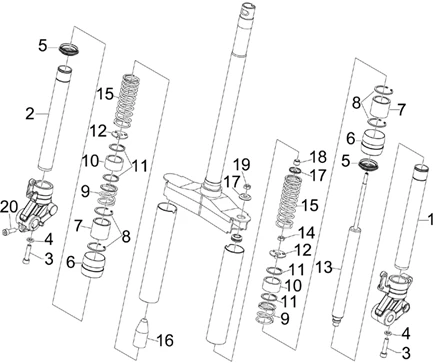

Suspensions - roues : 04.06 COMPOSANTS DE LA FOURCHE (MVP)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/158/Runner_50_Pure_Jet_SC_2006_04.06.PNG)
1 |
TIGE DROITE |
||||||
|
2 |
561916 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
3 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921- More informationQuantity required : 2 |
||||||
|
4 |
494810 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/0/img/67050.jpg)
5 |
FORK OIL SEAL "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER -564236- More informationQuantity required : 2 |
||||||
|
6 |
PROTECTION FOURCHE |
||||||
|
7 |
274468 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
8 |
561919 - CLIPS More informationQuantity required : 4 |
||||||
|
9 |
RESSORT |
||||||
|
10 |
BAGUE DE FOURCHE FX |
||||||
|
11 |
561922 - CLIPS More informationQuantity required : 4 |
||||||
|
12 |
BOUCHON |
||||||
|
13 |
CARTOUCHE |
||||||
|
14 |
ECROU |
||||||
|
15 |
561925 - RESSORT More informationQuantity required : 2 |
||||||
|
16 |
SILENBLOC |
||||||
|
17 |
SILENBLOC |
||||||
|
18 |
561921 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
19 |
494694 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
20 |
SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150- More informationQuantity required : 1 |
