Vehicle Exploded View - APRILIA RX 125 E5+ 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

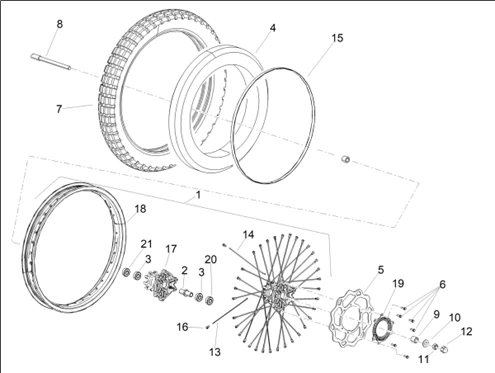

Roues : 05.01 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1314/RX_125_E5_2025_(EMEA)_05.01.png)
1 |
231590 - CLIPS More informationQuantity required : 1 |
||||||
|
2 |
1C007814 - ROUE AVANT More informationQuantity required : 1 |
||||||
|
3 |
1C007815 - ENTRETOISE DE ROUE More informationQuantity required : 2 |
||||||
|
4 |
2R000369 - CHAMBRE A AIR 2.75/3.0-21' More informationQuantity required : 1 |
||||||
|
5 |
865801 - DISQUE FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
6 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152- More informationQuantity required : 6 |
||||||
|
7 |
2R000354 - PNEU AVANT 100/80-17 More informationQuantity required : 1 |
||||||
|
8 |
2R000362 - AXE DE ROUE More informationQuantity required : 1 |
||||||
|
9 |
2R000450 - DOUILLE More informationQuantity required : 1 |
||||||
|
10 |
2R000423 - RONDELLE #15×#28×2.5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
11 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/2/5/img/64425.jpg)
12 |
FRONT WHEEL GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01201331 More informationQuantity required : 1 |
||||||
|
13 |
2R000464 - RAYON BC3.2×246 More informationQuantity required : 18 |
||||||
|
14 |
2R000466 - RAYON BC3.2×248 More informationQuantity required : 18 |
||||||
|
15 |
2R000339 - AILERON More informationQuantity required : 1 |
||||||
|
16 |
2R000467 - NIPPLE 3.5×20 More informationQuantity required : 36 |
||||||
|
17 |
2R000467 - NIPPLE 3.5×20 More informationQuantity required : 1 |
||||||
|
18 |
2R000463 - JANTE More informationQuantity required : 1 |
||||||
|
19 |
2B004213 - ROUE PHONIQUE More informationQuantity required : 1 |
||||||
|
20 |
2B004213 - ROUE PHONIQUE More informationQuantity required : 1 |
||||||
|
21 |
1C007820 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
