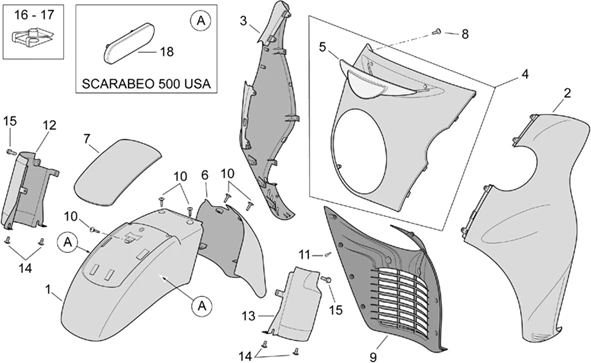

Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006

	P2R reference	47910
	Maker reference	AP8126867

AP8126867 - GARDE-BOUE AV.SUP.GRIS;

	P2R reference	51156
	Maker reference	AP8156047

AP8156047 - GARDE-BOUE AV.SUP.BLEU;

	P2R reference	51158
	Maker reference	AP8156049

AP8156049 - GARDE-BOUE AV.SUP.BEIGE;

	P2R reference	51160
	Maker reference	AP8156051

AP8156051 - GARDE-BOUE AV.SUP.NOIR;

	P2R reference	51182
	Maker reference	AP8156086

AP8156086 - PARAFANGO ANT.SUP.V.GRIGIO P.

	P2R reference	51195
	Maker reference	AP8156108

AP8156108 - PARAFANGO ANT.SUP.V.BEIGE MOU

	P2R reference	51196
	Maker reference	AP8156109

AP8156109 - PARAFANGO ANT.SUP.V.NERO DARK.

	P2R reference	51207
	Maker reference	AP8156125

AP8156125 - PARAFANGO ANT.SUP.V.GRIGIO DIA

	P2R reference	51217
	Maker reference	AP8156137

AP8156137 - PARAFANGO ANT.SUP.V.BLU MAIN

	P2R reference	51219
	Maker reference	AP8156143

AP8156143 - PARAFANGO ANT.SUP.V.BIANCO CAM

	P2R reference	51221
	Maker reference	AP8156145

AP8156145 - PARAFANGO ANT.SUP.V.BIANCO CAM

	P2R reference	53955
	Maker reference	AP8178336

AP8178336 - SEMISCUDO ANT.SX V.GRIGIO DIA.

	P2R reference	54045
	Maker reference	AP8178589

AP8178589 - SEMISCUDO ANT.SX V.BIANCO CAM.

	P2R reference	54120
	Maker reference	AP8178732

AP8178732 - SEMISCUDO ANT.SX V.GRIGIO DIA.

	P2R reference	50557
	Maker reference	AP8149202

AP8149202 - TABLIER AVANT GOCHE, GRIS

	P2R reference	53230
	Maker reference	AP8168551

AP8168551 - TABLIER AVANT GOCHE, BLEU;

	P2R reference	53244
	Maker reference	AP8168568

AP8168568 - TABLIER AVANT GOCHE, BEIGE;

	P2R reference	53253
	Maker reference	AP8168578

AP8168578 - TABLIER AVANT GOCHE, NOIR;

	P2R reference	53925
	Maker reference	AP8178275

AP8178275 - SEMISCUDO ANTERIORE SX V.GR.P.

	P2R reference	53951
	Maker reference	AP8178331

AP8178331 - SEMISCUDO ANTER.SX V.BEIGE MOU

	P2R reference	50575
	Maker reference	AP8149253

AP8149253 - TABLIER AVANT DROIT, GRIS

	P2R reference	53229
	Maker reference	AP8168550

AP8168550 - TABLIER AVANT DROIT, BLEU;

	P2R reference	53243
	Maker reference	AP8168567

AP8168567 - TABLIER AVANT DROIT, BEIGE;

	P2R reference	53252
	Maker reference	AP8168577

AP8168577 - TABLIER AVANT DROIT, NOIR;

	P2R reference	53924
	Maker reference	AP8178274

AP8178274 - SEMISCUDO ANTERIORE DX V.GRI.P

	P2R reference	53950
	Maker reference	AP8178330

AP8178330 - SEMISCUDO ANTER.DX V.BEIGE MOU

	P2R reference	53954
	Maker reference	AP8178335

AP8178335 - SEMISCUDO ANT.DX V.GRIGIO DIA.

	P2R reference	54044
	Maker reference	AP8178588

AP8178588 - SEMISCUDO ANT.DX V.BIANCO CAM.

	P2R reference	54119
	Maker reference	AP8178731

AP8178731 - SEMISCUDO ANT.DX V.GRIGIO DIA.

	P2R reference
	Maker reference	AP8149209

Coffre, silver;

	P2R reference	53228
	Maker reference	AP8168549

AP8168549 - COFFRE, GRIS;

	P2R reference	53251
	Maker reference	AP8168576

AP8168576 - COFFRE, ROUGE;

	P2R reference	53953
	Maker reference	AP8178333

AP8178333 - COFANO V.NERO SHAD.CON FREGIO

	P2R reference	54043
	Maker reference	AP8178587

AP8178587 - COFANO V.GRIGIO O.CON FREGIO

	P2R reference
	Maker reference	AP8149212

Décor avant;

	P2R reference	53242
	Maker reference	AP8168566

AP8168566 - FREGIO COFANO ANT.CROMATO

	P2R reference
	Maker reference	AP8178334

Décor avant

	P2R reference	47915
	Maker reference	AP8126882

AP8126882 - GARDE-BOUE AV.INF.GRIS;

	P2R reference	51157
	Maker reference	AP8156048

AP8156048 - GARDE-BOUE AV.INF.BLEU;

	P2R reference	51159
	Maker reference	AP8156050

AP8156050 - GARDE-BOUE AV.INF.BEIGE;

	P2R reference	51161
	Maker reference	AP8156052

AP8156052 - GARDE-BOUE AV.INF.NOIR;

	P2R reference	51208
	Maker reference	AP8156126

AP8156126 - PARAFANGO ANT.INF.V.GRIGIO DIA

	P2R reference	51220
	Maker reference	AP8156144

AP8156144 - PARAFANGO ANT.INF.V.BIANCO CAM

	P2R reference	53011
	Maker reference	AP8168091

AP8168091 - FERMET. GARD-B AV, SILVER;

	P2R reference	53231
	Maker reference	AP8168552

AP8168552 - FERMET. GARD-B AV, GRIS;

	P2R reference	53254
	Maker reference	AP8168579

AP8168579 - FERMET. GARD-B AV, ROUGE;

	P2R reference	53956
	Maker reference	AP8178337

AP8178337 - CHIUSURA PARAF.ANT.V.NERO SHAD

	P2R reference	54046
	Maker reference	AP8178590

AP8178590 - CHIUSURA PARAF.ANT.V.GRIGIO O.

	P2R reference	71957
	Maker reference	AP8152298

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

	P2R reference	50558
	Maker reference	AP8149203

AP8149203 - CONVOYEUR, NOIR;

	P2R reference	71961
	Maker reference	AP8152302
	Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

	P2R reference	214483
	Maker reference	2B014101

2B014101 - INOX HEXAGON COCKET SCREWS M5X12

	P2R reference	71893
	Maker reference	AP8150493

AP8150493 - VIS

	P2R reference	47911
	Maker reference	AP8126868

AP8126868 - CACHE-TIGE GAUCHE;

	P2R reference	50683
	Maker reference	AP8149512

AP8149512 - CACHE-TIGE DROITE;

	P2R reference	71933
	Maker reference	AP8152246

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

	P2R reference	71951
	Maker reference	AP8152289

AP8152289 - VIS BRIDE

	P2R reference	71174
	Maker reference	AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	71569
	Maker reference	AP8124719

AP8124719 - CATADIOPTRE, AMBRE
