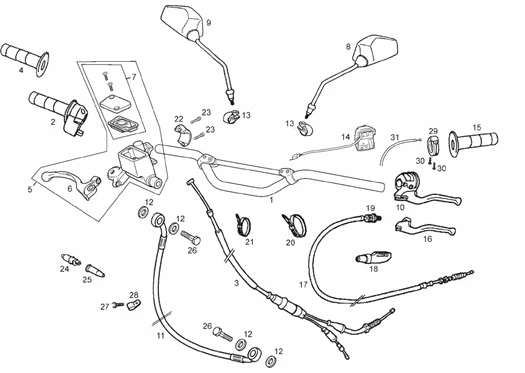

Vehicle Exploded View - DERBI SENDA HYP 50 SENDA HYP DRD EVO 2008-2009 E2

	P2R reference	190599
	Maker reference	86485100W0G

86485100W0G - CTO.MANILLAR TITANIO EVO 50CC (C)

	P2R reference	190615
	Maker reference	8664500001

8664500001 - CTO.MANILLAR GRS.TITN.EVO 50CC 09

	P2R reference	64654
	Maker reference	00H02101621

THROTTLE HANDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006> -00H02101621-

	P2R reference	64361
	Maker reference	00H00931171

TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006> -00H00931171

	P2R reference	64359
	Maker reference	00H00930091

RIGHT HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00930091-

	P2R reference	189066
	Maker reference	865257

865257 - MAIT. CYL. FREIN AV

	P2R reference	187830
	Maker reference	00H00908201

00H00908201 - MANETE DU FREIN AVANT

	P2R reference	69962
	Maker reference	862534

FRONT/REAR BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> 862534-

	P2R reference	64123
	Maker reference	00G04613921

MIRROR- LEFT - F1 TYPE - "PIAGGIO GENUINE PART" GILERA 50 SMT RACING -00G04613921-

	P2R reference	64676
	Maker reference	00H02207671

MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2010 -00H02207671

	P2R reference	64661
	Maker reference	00H02105612

00H02105612 - ENS. PORTE-MANETTE GAUCHE

	P2R reference	190600
	Maker reference	865449

865449 - CTO.TUBO LIQUIDO FRENO DT

	P2R reference	70303
	Maker reference	867238

BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238

	P2R reference	64665
	Maker reference	00H02200681

00H02200681 - COLLIER

	P2R reference	64692
	Maker reference	00H02305381

SWITCH "PIAGGIO GENUINE PART" 50 A BOITE GILERA 50 SMT, RCR 2006-/APRILIA 50 SX, RX 2006- 00H02305381-

	P2R reference	64358
	Maker reference	00H00930071

LEFT HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00930071-

	P2R reference	64335
	Maker reference	00H00903291

CLUTCH LEVER- "PIAGGIO GENUINE PART" GILERA 50 SMT 2013> 170 MM ALU -00H00903291

	P2R reference	151767
	Maker reference	2B005231

CABLE KIT FOR CLUTCH COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006> -2B005231

	P2R reference	64653
	Maker reference	00H02101011

CLUTCH LEVER GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02101011-

	P2R reference	63902
	Maker reference	00F00920551

SCREW - FOR CLUTCH CABLE ADJUSTER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006-, APRILIA 50 RX,SX 2006-2013 (M6 L27MM) -00F00920551-

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	63869
	Maker reference	00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

	P2R reference	64652
	Maker reference	00H02100901

00H02100901 - COLLIER

	P2R reference	63613
	Maker reference	000020512515

00002051251 - VIS A TETE CREUSE 5M80X12 N

	P2R reference	63870
	Maker reference	00D01000701

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006 -00D01000701

	P2R reference	63654
	Maker reference	000050107605

00005010760 - CAPUCHON

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	63617
	Maker reference	000020610115

00002061011 - VIS A TETE CREUSE 6M100X10.

	P2R reference	70054
	Maker reference	864454

FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454

	P2R reference	72188
	Maker reference	AP8212529

CHOKE CONTROL "PIAGGIO GENUINE PART" APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR -AP8212529-

	P2R reference	69899
	Maker reference	861621

861621 - VIS 2,5X9,5

	P2R reference	69850
	Maker reference	861305

CHOKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2010 -861305-
