Vehicle Exploded View - DERBI SENDA HYP 50 SENDA HYP DRD EVO LTD EDITION 2008 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

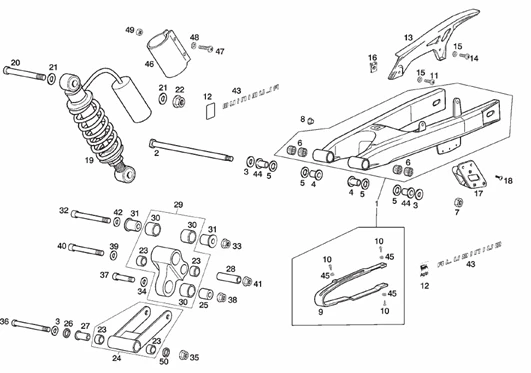

Tables : 3 FOURCHE ARRIERE - AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1078/SENDA_HYP_DRD_EVO_LTD_EDITION_2008_E2_3.png)
1 |
86557100WGB5 - BRAS OSCILLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/4/img/64484.jpg)
2 |
REAR WHEEL AXLE/SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> APRILIA 50 SX, RX 2006> Ø 12 MM -00H013042025 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
3 |
709037 - RONDELLE More informationQuantity required : 1 |
||||||
|
3 |
709037 - RONDELLE More informationQuantity required : 1 |
||||||
|
4 |
865540 - CASQ.SEPAR.BASCLNT.INT.EVO LTD.EDIT More informationQuantity required : 1 |
||||||
|
5 |
00H01500601 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/6/img/67416.jpg)
6 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY -600161 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/8/img/63768.jpg)
7 |
NUT - INDESSERABLE M12X150 FOR REAR WHEEL/ENGINE SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00262120032 More informationQuantity required : 1 |
||||||
|
8 |
00H01801751 - BOUCHON More informationQuantity required : 1 |
||||||
|
9 |
00H01808331 - PLAQUE GLISSEMENT CHAINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
10 |
SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
11 |
00012061200 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
|
12 |
862535 - MONOGRAMME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/5/7/img/64557.jpg)
13 |
CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01508181 More informationQuantity required : 1 |
||||||
|
14 |
00012061200 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
15 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/5/3/img/69853.jpg)
17 |
CHAIN GUIDE "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX/DERBI 50 SENDA (COMPLETE) -86133R More informationQuantity required : 1 |
||||||
|
18 |
00092061214 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
|
19 |
8655420001 - CTO.AMORTIG.ROJ/ORO DRD EVO LTD.EDIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/3/0/img/64230.jpg)
20 |
00H00303892 - BOULON TETE HEX. M12 175X58 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/3/img/63633.jpg)
21 |
00003115422 - ROND. PLATE MECANISSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/6/img/63716.jpg)
22 |
NUT - SAFETY NUT FOR SUPENSION ARM (12X175) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00023112000 More informationQuantity required : 1 |
||||||
|
23 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY -600161 More informationQuantity required : 1 |
||||||
|
24 |
8656085 - R-CTO.BIELA INF.CHASIS DRD EVO LTD.EDIT More informationQuantity required : 1 |
||||||
|
25 |
00H00302861 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
26 |
00H01501601 - ARANDELA ROZAM.BIELA.DRD 05 More informationQuantity required : 1 |
||||||
|
27 |
865541 - CASQ.SEPAR.BIELA CHASIS DRD125 More informationQuantity required : 1 |
||||||
|
28 |
00H06801481 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
29 |
00H00300921 - CTO.BIELA ARTIC.AMORT.SD.AL.FR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/3/0/img/68130.jpg)
30 |
ROLLER BEARING FOR SWINGING ARM 25X32X24 "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, 125 RX, SX 2018> -650031 More informationQuantity required : 1 |
||||||
|
31 |
00H06802481 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/7/7/6/img/187776.jpg)
32 |
00H06801471 - VIS More informationQuantity required : 1 |
||||||
|
33 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/2/7/img/64527.jpg)
34 |
00H01500421 - RONDELLE FIXATION INFERIEUR AM More informationQuantity required : 1 |
||||||
|
35 |
|
||||||
|
36 |
00H00304891 - TORN.C/ALL.12M175X117 DIN912 12.9 DAC More informationQuantity required : 1 |
||||||
|
37 |
00H00305891 - VIS More informationQuantity required : 1 |
||||||
|
38 |
|
||||||
|
39 |
00H01500421 - RONDELLE FIXATION INFERIEUR AM More informationQuantity required : 1 |
||||||
|
40 |
00H00300931 - VIS More informationQuantity required : 1 |
||||||
|
41 |
|
||||||
|
42 |
00H01500421 - RONDELLE FIXATION INFERIEUR AM More informationQuantity required : 1 |
||||||
|
43 |
00H00311331 - ADHESIF More informationQuantity required : 1 |
||||||
|
44 |
865558 - CASQ.SEPAR.BASC-CHAS.EVO LTD.EDIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
45 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226 More informationQuantity required : 1 |
||||||
|
46 |
00H02201521 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
47 |
00000004630 - VIS A TETE ALLEN 6M100X30. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/5/img/63595.jpg)
48 |
00000031070 - RONDELLE PLATE D7,3X13,8MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/6/img/63586.jpg)
49 |
NUT (6M100) "PIAGGIO GENUINE PART" -00000021060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/9/img/63609.jpg)
50 |
00001213190 - DOUILLE DE BUTEE More informationQuantity required : 1 |
