Vehicle Exploded View - DERBI SENDA R 50 SENDA R 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

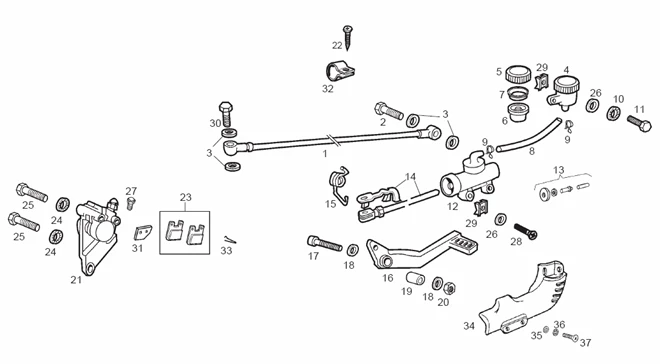

Tables : 11 FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1085/SENDA_R_2002_RACER_11.png)
1 |
00D01130081 - TIGE DE FREIN More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
3 |
BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/3/img/63873.jpg)
4 |
REAR BRAKE FLUID TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01100201 More informationQuantity required : 1 |
||||||
|
5 |
00D01100631 - BOUCHON DU RESERVOIR DU LIQ.FREIN More informationQuantity required : 1 |
||||||
|
6 |
00D01100651 - ENTRETOISE RESERVOIR More informationQuantity required : 1 |
||||||
|
7 |
00D01100641 - JOINT BOUCHON DU RESERV.LIQ.FR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/4/img/63874.jpg)
8 |
00D01100211 - FLEXIBLE DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/0/9/img/64809.jpg)
9 |
HOSE CLAMP FOR BRAKE TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03700131- More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
|
11 |
|
||||||
|
12 |
00D01100181 - ENSEMBLE COMMANDE FREIN ARRIER More informationQuantity required : 1 |
||||||
|
13 |
00H01100461 - ENSEM. KIT POPMPE FREIN ARR. More informationQuantity required : 1 |
||||||
|
14 |
00H01101611 - TIGE DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/8/3/5/1/img/188351.jpg)
15 |
00D01100071 - RESSORT PEDALE FREIN More informationQuantity required : 1 |
||||||
|
16 |
00D01130011 - PEDALE DE FREIN AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/0/img/63620.jpg)
17 |
00002084011 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
18 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
|
19 |
00D01110171 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
20 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
21 |
00H01102581 - ETRIER FREIN ARR. More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/2/5/img/64125.jpg)
23 |
BRAKE PADS - "PIAGGIO GENUINE PART" GILERA 50 SMT FRONT+AR, RCR FRONT+REAR /APRILIA 50 RS REAR, RX REAR, SX REAR (AJP) -00G04700141- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/1/img/63731.jpg)
24 |
00034000802 - ZONDELLE EVENTAIL INT. D8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/4/img/63564.jpg)
25 |
00000002840 - TOR.C/EXAG. 8M125X40.8.8/D-931 ZNB. More informationQuantity required : 1 |
||||||
|
26 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/5/img/70045.jpg)
27 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS -864123 More informationQuantity required : 1 |
||||||
|
28 |
00008062000 - BOULON BOMBEE ALLEN 6M100X20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
29 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
30 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
|
31 |
00G04700131 - CALE DE PLAQU.DE FREIN ANTI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
32 |
FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/7/img/64467.jpg)
33 |
BRAKE PAD SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01301831- More informationQuantity required : 1 |
||||||
|
34 |
00H01100731 - PROTECTEUR ENS.COMMANDE FREIN More informationQuantity required : 1 |
||||||
|
35 |
BOULON S03105900 |
||||||
|
36 |
|
||||||
|
37 |
|
