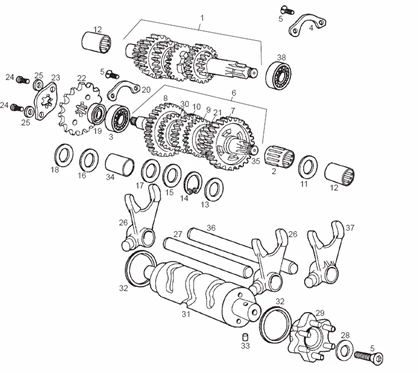

Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Trem E2 2004 (EMEA)

	P2R reference	188013
	Maker reference	00H02803291

00H02803291 - AXE PRIMAIRE

	P2R reference	69526
	Maker reference	847544

ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847544-

	P2R reference	187572
	Maker reference	00H02800901

00H02800901 - BUTEE DE ROULEMENT

	P2R reference	127169
	Maker reference	1A003116

SCREW - FOR GEARBOX "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A003116-

	P2R reference	64738
	Maker reference	00H02807131

00H02807131 - AXE SECONDAIRE MONTE COMPLE

	P2R reference	187573
	Maker reference	00H02820211

00H02820211 - PIGNON SECONDAIRE I

	P2R reference	69472
	Maker reference	847157

2 ND WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847157

	P2R reference	187574
	Maker reference	00H02810231

00H02810231 - PIGNON 3 (ARBRE SEGONDAIRE)

	P2R reference	69471
	Maker reference	847156

4 ST WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847156

	P2R reference	187575
	Maker reference	00H02800181

00H02800181 - RONDELLE

	P2R reference	69485
	Maker reference	847211

ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -847211-

	P2R reference	146216
	Maker reference	871708

871708 - RONDELLE

	P2R reference	69525
	Maker reference	847542

SAFETY WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847542-

	P2R reference	187576
	Maker reference	00H02800561

00H02800561 - RONDELLE

	P2R reference	69524
	Maker reference	847541

847541 - RONDELLE

	P2R reference	69528
	Maker reference	847546

847546 - RONDELLE

	P2R reference	69527
	Maker reference	847545

SECONDARY SHAFT WASHER (1,2X17X28) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS, TUONO -847545-

	P2R reference	69412
	Maker reference	847019

GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019

	P2R reference	63612
	Maker reference	000020289005

00002028900 - BUTEE DE ROULEMENT

	P2R reference	69469
	Maker reference	847154

5 TH WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847154

	P2R reference	63912
	Maker reference	00F02804371

00F02804371 - PIGNON SORTIE CHANGEMENT VI

	P2R reference	64741
	Maker reference	00H02810421

STEERING LOCK WASHER FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA 50 RCR, SMT 1999>2005 -00H02810421-

	P2R reference	63567
	Maker reference	000000045105

SCREW - FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" APRILIA RS 50-125 2006>2018, RX-SX 2006>2016 -00000004510-

	P2R reference	71851
	Maker reference	AP8150284

AP8150284 - RONDELLE EVENT.EXT.

	P2R reference	68935
	Maker reference	83073R

GEARBOX FORK- 2ND GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83073R

	P2R reference	187577
	Maker reference	00H02800881

00H02800881 - AXE

	P2R reference	187578
	Maker reference	00H02800801

00H02800801 - VIS

	P2R reference	187579
	Maker reference	00H02810631

00H02810631 - TETE TAMBOUR SELECTEUR

	P2R reference	69473
	Maker reference	847158

6 TH WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847158

	P2R reference	64734
	Maker reference	00H02802861

00H02802861 - BARILLET

	P2R reference	187580
	Maker reference	00D04000291

00D04000291 - RONDELLE DE REGLAJE DU TAMB

	P2R reference	69486
	Maker reference	8472136

ROLLER FOR GEARBOX CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847213-

	P2R reference	187581
	Maker reference	00H02800241

00H02800241 - ENTRETOISE

	P2R reference	69474
	Maker reference	847159

GEARBOX SHAFT - SECONDARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847159

	P2R reference	187583
	Maker reference	00H02800891

00H02800891 - AXE

	P2R reference	187584
	Maker reference	00H02820661

00H02820661 - FOURCHETTE

	P2R reference	69138
	Maker reference	840277

BEARING ON BELT COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 350-400-500 -840277-
