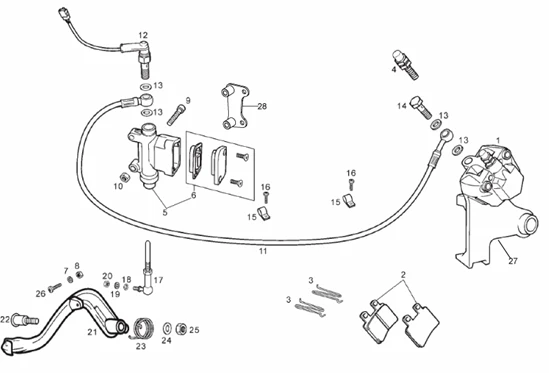

Vehicle Exploded View - DERBI SENDA R 50 SENDA R DRD PRO 2005-2007 E2 3ed

	P2R reference	187872
	Maker reference	00H01108581

00H01108581 - ETRIER FREIN ARR.

	P2R reference	187873
	Maker reference	2B000746

2B000746 - PINCE FREIN AR

	P2R reference	187874
	Maker reference	00H01304931

00H01304931 - ENS. PLAQUETTE DE FREIN

	P2R reference	72838
	Maker reference	B044223

B044223 - KIT PLAQUETTES

	P2R reference	64467
	Maker reference	00H01301831

BRAKE PAD SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01301831-

	P2R reference	70045
	Maker reference	864123

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS -864123

	P2R reference	70305
	Maker reference	867240

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 50 SX, RX 2011>, 50 SMT, RCR 2011> -867240-

	P2R reference	187875
	Maker reference	00H01111181

00H01111181 - ENSEMBLE COMMANDE FREIN ARRIER

	P2R reference	70264
	Maker reference	866955

REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 SX, RX 2011> -866955-

	P2R reference	69962
	Maker reference	862534

FRONT/REAR BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> 862534-

	P2R reference	70306
	Maker reference	867241

867241 - KIT COUVERCLE POMPE

	P2R reference	63598
	Maker reference	000000330405

STEERING LOCK WASHER FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -00000033040-

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	187876
	Maker reference	00H01115081

00H01115081 - TIGE DE FREIN

	P2R reference	187877
	Maker reference	867612

867612 - TUBE FREIN

	P2R reference	64372
	Maker reference	00H01001701

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01001701

	P2R reference	187878
	Maker reference	00H01002701

00H01002701 - CONTACTEUR DE STOP

	P2R reference	70303
	Maker reference	867238

BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238

	P2R reference	187677
	Maker reference	00H00901261

00H00901261 - VIS

	P2R reference	70302
	Maker reference	867237

867237 - RACCORD

	P2R reference	70054
	Maker reference	864454

FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454

	P2R reference	187879
	Maker reference	00H01105611

00H01105611 - TIGE DE FREIN

	P2R reference	187880
	Maker reference	867620

867620 - POUSSOIR CDE MAI-CYL.

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	154536
	Maker reference	865585

865585 - SCTO.PALANCA FRENO TRAS.

	P2R reference	187881
	Maker reference	00H01103171

00H01103171 - VIS

	P2R reference	187882
	Maker reference	00H01111011

00H01111011 - RESSORT

	P2R reference	63655
	Maker reference	000055275405

SPACER- FOR REAR BRAKE COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00005527540-

	P2R reference	63715
	Maker reference	000231080005

NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

	P2R reference	63563
	Maker reference	000000024205

00000002420 - VIS

	P2R reference	187883
	Maker reference	867613

867613 - SUPPORT

	P2R reference	187884
	Maker reference	867617

867617 - SUPPORT
