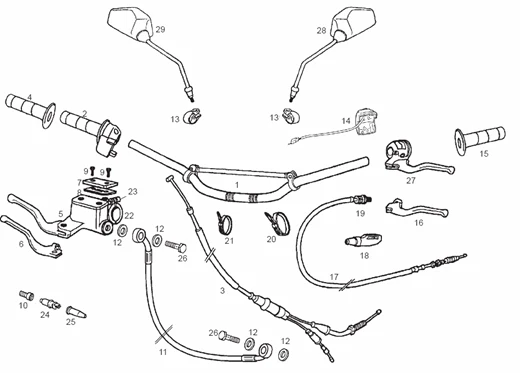

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD RACING 2005-2008 E2 2ver

	P2R reference	187974
	Maker reference	00H00906012

00H00906012 - GUIDON

	P2R reference	187975
	Maker reference	00H00906013

00H00906013 - GUIDON

	P2R reference	64654
	Maker reference	00H02101621

THROTTLE HANDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006> -00H02101621-

	P2R reference	64361
	Maker reference	00H00931171

TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006> -00H00931171

	P2R reference	64359
	Maker reference	00H00930091

RIGHT HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00930091-

	P2R reference	64659
	Maker reference	00H02105082

00H02105082 - R-ENSEM. KIT REPAR. POMPE SE

	P2R reference	64341
	Maker reference	00H00906203

FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2010 -00H00906203-

	P2R reference	64648
	Maker reference	00H02100191

FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191-

	P2R reference	64651
	Maker reference	00H02100861

FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861-

	P2R reference	64330
	Maker reference	00H00900871

SPACER- FOR STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 SX, RX -00H00900871

	P2R reference	64354
	Maker reference	00H00919751

00H00919751 - FLEXIBLE DE FREIN AVANT

	P2R reference	70303
	Maker reference	867238

BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238

	P2R reference	64665
	Maker reference	00H02200681

00H02200681 - COLLIER

	P2R reference	64692
	Maker reference	00H02305381

SWITCH "PIAGGIO GENUINE PART" 50 A BOITE GILERA 50 SMT, RCR 2006-/APRILIA 50 SX, RX 2006- 00H02305381-

	P2R reference	64358
	Maker reference	00H00930071

LEFT HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00930071-

	P2R reference	64335
	Maker reference	00H00903291

CLUTCH LEVER- "PIAGGIO GENUINE PART" GILERA 50 SMT 2013> 170 MM ALU -00H00903291

	P2R reference	151767
	Maker reference	2B005231

CABLE KIT FOR CLUTCH COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006> -2B005231

	P2R reference	64653
	Maker reference	00H02101011

CLUTCH LEVER GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02101011-

	P2R reference	63902
	Maker reference	00F00920551

SCREW - FOR CLUTCH CABLE ADJUSTER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006-, APRILIA 50 RX,SX 2006-2013 (M6 L27MM) -00F00920551-

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	63869
	Maker reference	00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

	P2R reference	64652
	Maker reference	00H02100901

00H02100901 - COLLIER

	P2R reference	63613
	Maker reference	000020512515

00002051251 - VIS A TETE CREUSE 5M80X12 N

	P2R reference	63870
	Maker reference	00D01000701

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006 -00D01000701

	P2R reference	63654
	Maker reference	000050107605

00005010760 - CAPUCHON

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	64661
	Maker reference	00H02105612

00H02105612 - ENS. PORTE-MANETTE GAUCHE

	P2R reference	64123
	Maker reference	00G04613921

MIRROR- LEFT - F1 TYPE - "PIAGGIO GENUINE PART" GILERA 50 SMT RACING -00G04613921-

	P2R reference	64676
	Maker reference	00H02207671

MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2010 -00H02207671
