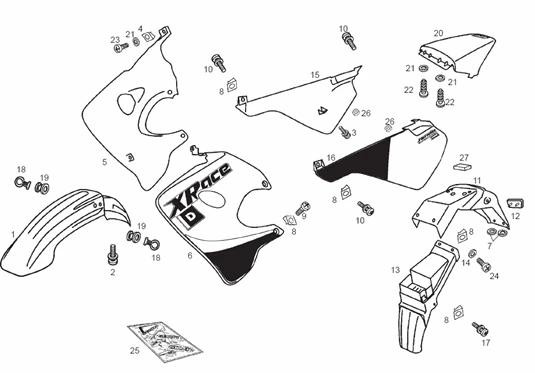

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-RACE 2007 E2 3ed

	P2R reference	64305
	Maker reference	00H00713023

00H00713023 - GARDE-BOUE AVANT

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	188446
	Maker reference	86345700W0B

86345700W0B - SCTO.TAPA DL.DR.NGR/BLN.SM X-RACE 07

	P2R reference	188447
	Maker reference	86345700W0N

86345700W0N - SCTO.TAPA DL.DR.NGR.SM X-RACE 07

	P2R reference	188448
	Maker reference	86345800W0B

86345800W0B - SCTO.TAPA DL.IZ.NGR/BLN.SM X-RACE 07

	P2R reference	188449
	Maker reference	86345800W0N

86345800W0N - SCTO.TAPA DL.IZ.NGR.SM X-RACE 07

	P2R reference	69844
	Maker reference	861239

WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239-

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701-

	P2R reference	63923
	Maker reference	00F05900041

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

	P2R reference	64299
	Maker reference	00H00712341

MUDGUARD - REAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00712341-

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752-

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H00712341-

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171-

	P2R reference	187510
	Maker reference	00H00505074

00H00505074 - TAPA LAT.DR.SENDA SM NEGRA

	P2R reference	188450
	Maker reference	00H00515071

00H00515071 - TAPA LAT.DR.BLNC.X-TREM

	P2R reference	188452
	Maker reference	86346010W0N5

86346010W0N5 - R-SCTO.TAP.LT.IZ.NGR.SM X-RACE 07

	P2R reference	188451
	Maker reference	00H00515081

00H00515081 - TAPA LAT.IZ.BLNC.X-TREM

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	64668
	Maker reference	00H02201591

FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021-

	P2R reference	64285
	Maker reference	00H00608164

REAR MUDGUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> BLACK -00H00608164-

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	63681
	Maker reference	000110514015

SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401

	P2R reference	63703
	Maker reference	000121520005

SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000-

	P2R reference	63696
	Maker reference	000120612005

00012061200 - VIS A TETE RONDE A FENTES C

	P2R reference	188453
	Maker reference	86353700W0B

86353700W0B - R-CTO.KIT CALCAS SM X-RACE BLANCA 07

	P2R reference	188454
	Maker reference	86353700W0N

86353700W0N - R-CTO.KIT CALCAS SM X-RACE NEGRA 07

	P2R reference	188284
	Maker reference	00H00501761

00H00501761 - SILENTBLOC

	P2R reference	188419
	Maker reference	00H05900621

00H05900621 - ESPUMA ADHESIVA DE 5MMX360MM
