Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-TREM 2005 E2 2ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

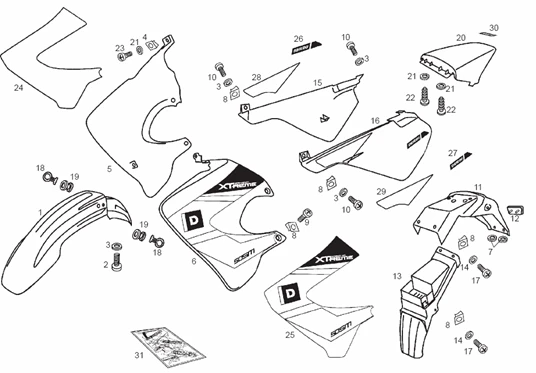

Tables : 5 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1048/SENDA_SM_X-TREM_2005_E2_2_edicion_5.png)
1 |
00H007170225 - GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
|
1 |
00H007170235 - GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
|
1 |
00H007190225 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H007190235 - GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
2 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
3 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
4 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462 More informationQuantity required : 1 |
||||||
|
5 |
00H04410773 - TAPA DLN.DCHA.BLNCA.DRD EDITON More informationQuantity required : 1 |
||||||
|
5 |
00H044398025 - COUVERTURE DRT More informationQuantity required : 1 |
||||||
|
5 |
00H04410773 - TAPA DLN.DCHA.BLNCA.DRD EDITON More informationQuantity required : 1 |
||||||
|
6 |
00H04410783 - TAPA DLN.IZDA.BLNCA.DRD EDITON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
7 |
WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701 More informationQuantity required : 1 |
||||||
|
10 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/9/img/64299.jpg)
11 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00712341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/8/img/64118.jpg)
12 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/3/img/64293.jpg)
13 |
REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H00712341 More informationQuantity required : 1 |
||||||
|
14 |
BOULON S03105900 |
||||||
|
15 |
00H00505074 - TAPA LAT.DR.SENDA SM NEGRA More informationQuantity required : 1 |
||||||
|
15 |
00H00559692 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00505074 - TAPA LAT.DR.SENDA SM NEGRA More informationQuantity required : 1 |
||||||
|
16 |
00H00505084 - TAPA LAT.IZ.SENDA SM 2000 NEGR More informationQuantity required : 1 |
||||||
|
16 |
00H00559702 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00559704 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
17 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/8/img/64668.jpg)
18 |
FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
19 |
RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021 More informationQuantity required : 1 |
||||||
|
20 |
00H00618161 - COUVRE-SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H006181665 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
21 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/1/img/63681.jpg)
22 |
SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
23 |
SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000 More informationQuantity required : 1 |
||||||
|
24 |
00H04928561 - ADHESIF More informationQuantity required : 1 |
||||||
|
24 |
00H04928562 - ADHESIF More informationQuantity required : 1 |
||||||
|
24 |
00H04928563 - ADHESIF More informationQuantity required : 1 |
||||||
|
24 |
00H04928564 - ADHESIF More informationQuantity required : 1 |
||||||
|
25 |
00H04928571 - ADHESIF More informationQuantity required : 1 |
||||||
|
25 |
00H04928572 - ADHESIF More informationQuantity required : 1 |
||||||
|
25 |
00H04928573 - ADHESIF More informationQuantity required : 1 |
||||||
|
25 |
00H04928574 - ADHESIF More informationQuantity required : 1 |
||||||
|
26 |
00H00521651 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
26 |
00H00521652 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
26 |
00H00522651 - ADHESIF More informationQuantity required : 1 |
||||||
|
27 |
00H00521641 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
27 |
00H00521642 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
27 |
00H00522641 - ADHESIF More informationQuantity required : 1 |
||||||
|
28 |
00H00519651 - ADHESIF More informationQuantity required : 1 |
||||||
|
29 |
00H00526641 - ADHESIF More informationQuantity required : 1 |
||||||
|
30 |
00H00608521 - ADHESIF DERBI More informationQuantity required : 1 |
||||||
|
31 |
00H05167651 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
31 |
00H05167652 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
31 |
00H05167653 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
31 |
00H05167654 - JEU ADHESIF More informationQuantity required : 1 |
