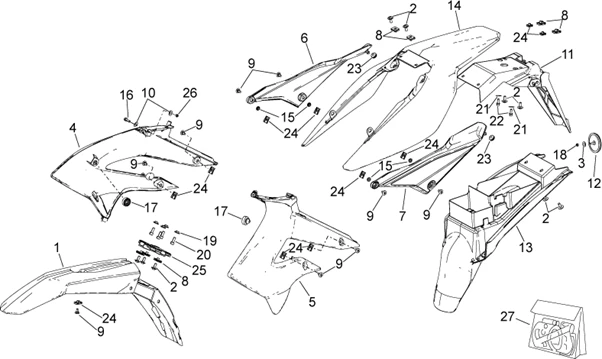

Vehicle Exploded View - GILERA SMT 50 2011-2012 (EMEA)

	P2R reference	70250
	Maker reference	86693000W0N

FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50 SMT2011>2012, RCR 2011>2015/APRILIA 125 SX 2018> BLACK -86693000W0N

	P2R reference	70251
	Maker reference	86693000W4R

FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> RED -86693000W4R

	P2R reference	71933
	Maker reference	AP8152246

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246

	P2R reference	71933
	Maker reference	00D05900141

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	70240
	Maker reference	86692500W0N6

RIGHT FRONT SIDE PANEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> BLACK -86692500W0N6

	P2R reference	70241
	Maker reference	86692500W4R

RIGHT FRONT SIDE PANEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> RED -86692500W4R

	P2R reference	70243
	Maker reference	86692600W4R

LEFT FRONT SIDE PANEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> RED -86692600W4R

	P2R reference	70242
	Maker reference	86692600W0N6

LEFT FRONT SIDE PANEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> BLACK -86692600W0N6

	P2R reference	70244
	Maker reference	866927

RIGHT SIDE CLOSURE (REAR) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -866927

	P2R reference	70245
	Maker reference	866928

LEFT SIDE CLOSURE(REAR) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -866928

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	71973
	Maker reference	AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

	P2R reference	63736
	Maker reference	000470304005

CLIP FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00047030400

	P2R reference	64308
	Maker reference	00H00718341

MUDGUARD/LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00718341

	P2R reference	72325
	Maker reference	AP8224164

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164

	P2R reference	70278
	Maker reference	866998

REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -866998

	P2R reference	70247
	Maker reference	86692900W0N6

REAR MUDGUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> BLACK -86692900W0N6

	P2R reference	70248
	Maker reference	86692900W4R

86692900W4R - QUEUE

	P2R reference	65337
	Maker reference	00N01000821

SPACER- FOR REAR SIDE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00N01000821

	P2R reference	63614
	Maker reference	000020520515

SCREW - FOR FAIRINGS FASTENING (5M80X15) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002052051

	P2R reference	65025
	Maker reference	00H06101101

RUBBER SPACER FOR LATERAL SHIELD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H06101101

	P2R reference	63588
	Maker reference	000000230405

00000023040 - ECROU INDESSERABLE4M70

	P2R reference	72597
	Maker reference	AP9100053

AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	154576
	Maker reference	2B005447

2B005447 - CAOUTCHOUC

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	70253
	Maker reference	866932

MUDGUARD SUPPORT- FRONT "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -866932

	P2R reference	63589
	Maker reference	000000230505

00000023050 - ECROU

	P2R reference	93095
	Maker reference	86745800W0N

STICKERS KIT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>2012 BLACK/GREY/RED -86745800W0N

	P2R reference	93096
	Maker reference	86745800W3R

86745800W3R - DECALCO SERIE
