Vehicle Exploded View - DERBI SONAR 150 Sonar 150 4T 2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

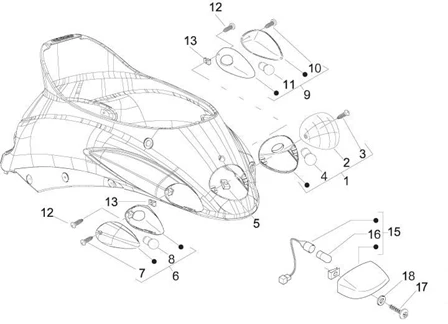

Circuit électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1059/Sonar_150_4T_2009_(EMEA)_06.04.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/3/img/67173.jpg)
1 |
TAILLIGHT- "PIAGGIO GENUINE PART" 50-125 LIBERTY 2000>2012 -580425 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/0/img/67170.jpg)
2 |
580099 - TRANSPARENT FEU AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/8/img/65388.jpg)
3 |
015728 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
4 |
LIGHT BULB FOR TAILLIGHT 12V-5/21W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -129953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/2/img/72922.jpg)
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017404 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/3/img/67313.jpg)
6 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" 50-125 LIBERTY -584780 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/0/img/63850.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008372 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
8 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/4/img/67314.jpg)
9 |
584781 - CLIGNOTANT AR DRT More informationQuantity required : 1 |
||||||
|
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008372 More informationQuantity required : 1 |
||||||
|
11 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
|
12 |
015728 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
13 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/0/9/img/146209.jpg)
15 |
REGISTRATION PLATE LIGHT PIAGGIO 125 FLY, LIBERTY, 125-250-300-350-400-500 BEVERLY/GILERA 125-250-300-500 NEXUS -58235R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
16 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
17 |
267115 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
18 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
