Vehicle Exploded View - DERBI SONAR 50 Sonar 50 2T 2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

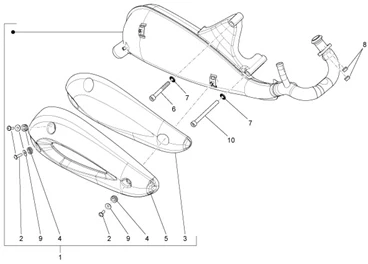

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1060/Sonar_50_2T_2009_(EMEA)_01.42.png)
1 |
8740625 - SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014 More informationQuantity required : 3 |
||||||
|
3 |
827050 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
4 |
841782 - PASSE CABLE More informationQuantity required : 3 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/0/img/69320.jpg)
6 |
SCREW - FOR EXHAUST "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, VESPA LX, VESPA-S, 125 FLY, X8 STREET -844470 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
7 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
8 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245 More informationQuantity required : 2 |
||||||
|
9 |
849826 - ENTRETOISE AR More informationQuantity required : 3 |
||||||
|
10 |
297582 - VIS More informationQuantity required : 1 |
