Vehicle Exploded View - MOTO-GUZZI SPORT 1100 Sport Carburatori 1100 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

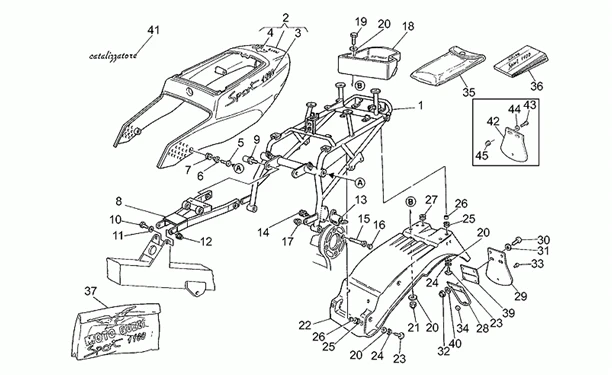

Chassis : 33.11 GARDE-BOUE AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/517/Sport_Carburatori_1100_1994-1996_33.11.PNG)
1 |
|
||||||
|
2 |
|
||||||
|
2 |
|
||||||
|
2 |
|
||||||
|
2 |
Queue AR |
||||||
|
2 |
Queue AR |
||||||
|
3 |
GU37923405 - "DECALCO ""SPORT 1100""" More informationQuantity required : 2 |
||||||
|
3 |
"Décalco ""Sport 1100""" |
||||||
|
4 |
"Décalco ""Moto Guzzi""" |
||||||
|
4 |
"Décalco ""Moto Guzzi""" |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/7/2/img/132972.jpg)
5 |
GU98230622 - VIS More informationQuantity required : 4 |
||||||
|
6 |
GU30576100 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
7 |
GU91551010 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
8 |
Châssis |
||||||
|
9 |
GU37409005 - VIS More informationQuantity required : 2 |
||||||
|
10 |
GU98054525 - VIS More informationQuantity required : 2 |
||||||
|
11 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 2 |
||||||
|
12 |
GU92660210 - ECROU More informationQuantity required : 2 |
||||||
|
13 |
GU66466815 - SERRURE CASQUE More informationQuantity required : 1 |
||||||
|
14 |
GU66468115 - VIS A ARRACHEMENT More informationQuantity required : 2 |
||||||
|
15 |
VIS |
||||||
|
16 |
GU30943400 - PETIT COUVERCLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
17 |
GU92630110 - ECROU M10X1,5 More informationQuantity required : 2 |
||||||
|
18 |
Flasque |
||||||
|
19 |
GU98054318 - VIS More informationQuantity required : 2 |
||||||
|
20 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 8 |
||||||
|
21 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
22 |
Garde-boue Ar. |
||||||
|
23 |
GU98230622 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
24 |
AP8152105 - RONDELLE More informationQuantity required : 4 |
||||||
|
25 |
GU91551082 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
26 |
GU91180608 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
27 |
GU91551062 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
28 |
GU30438102 - SUPP JUPE ANTI-ECLAB. More informationQuantity required : 1 |
||||||
|
29 |
Bavette anti-éclaboussures |
||||||
|
30 |
840548 - VIS More informationQuantity required : 4 |
||||||
|
31 |
GU95007205 - RONDELLE More informationQuantity required : 2 |
||||||
|
32 |
GU92630205 - ECROU More informationQuantity required : 4 |
||||||
|
33 |
GU23922210 - PIVOT More informationQuantity required : 1 |
||||||
|
34 |
GU95100123 - RONDELLE More informationQuantity required : 1 |
||||||
|
35 |
Trousse à outils |
||||||
|
36 |
Livret d’util.et entret. |
||||||
|
37 |
Décalco série |
||||||
|
37 |
Décalco série |
||||||
|
39 |
GU30437430 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
40 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
41 |
DECALCOMANIE D |
||||||
|
42 |
PARE BOUE AR. |
||||||
|
43 |
GU98230620 - VIS More informationQuantity required : 2 |
||||||
|
44 |
GU95001206 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/0/7/img/127207.jpg)
45 |
GU92630207 - ECROU More informationQuantity required : 2 |
All the exploded views of this vehicle
-
