Vehicle Exploded View - APRILIA SR 150 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

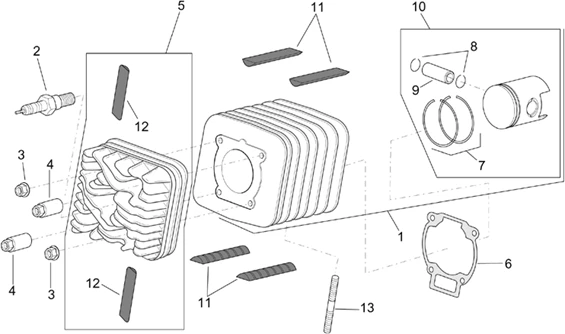

Moteur : 29.48 CULASSE - CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/618/SR_150_1999-2001_29.48.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/1/img/68881.jpg)
1 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 125 TYPHOON 2 STROKE, SKYPPER 2 STROKE/APRILIA 125 SR 2 STROKE -829984 More informationQuantity required : 1 |
||||||
1 |
GR.CYLINDRE PIST. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/9/7/img/69897.jpg)
2 |
SPARK PLUG BR8ES "PIAGGIO GENUINE PART" APRILIA 50-125 RS/MOTO- GUZZI 750 BREVA, NEVADA -861612- More informationQuantity required : 1 |
||||||
|
3 |
ECROU |
||||||
|
4 |
ECROU |
||||||
|
5 |
4316845 - CULASSE SKIPPER 150 - SKR 150 More informationQuantity required : 1 |
||||||
|
5 |
CULASSE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/9/img/66749.jpg)
6 |
487775 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/0/img/66750.jpg)
6 |
CYLINDER BASE GASKET- (0,6MM) "PIAGGIO GENUINE PART" 125 HEXAGON 2 STROKE/GILERA 125 RUNNER 2 STROKE -487776- More informationQuantity required : 1 |
||||||
|
6 |
Joint |
||||||
|
6 |
Joint |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/2/img/68842.jpg)
7 |
PISTON RING- "PIAGGIO GENUINE PART" 125 TYPHOON 2 STROKE, SKIPPER 2 STROKE/APRILIA 125 SR 2 STROKE -829379- More informationQuantity required : 2 |
||||||
|
7 |
483876 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
8 |
Anneau élastique |
||||||
|
9 |
2239414 - AXE More informationQuantity required : 1 |
||||||
|
9 |
AXE PISTON |
||||||
|
10 |
Ens pist.-Axe |
||||||
|
10 |
Ens pist.-Axe |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/3/0/img/66730.jpg)
10 |
PISTON "PIAGGIO GENUINE PART" 125 SKIPPER 2 STROKE/APRILIA 125 SR 1999>2001 2 STROKE -4872150004- More informationQuantity required : 1 |
||||||
|
10 |
Piston complet 3°sélect.O |
||||||
|
11 |
Insonorisation |
||||||
|
12 |
PLAQUETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/5/img/66665.jpg)
13 |
484706 - GOUJON More informationQuantity required : 1 |
