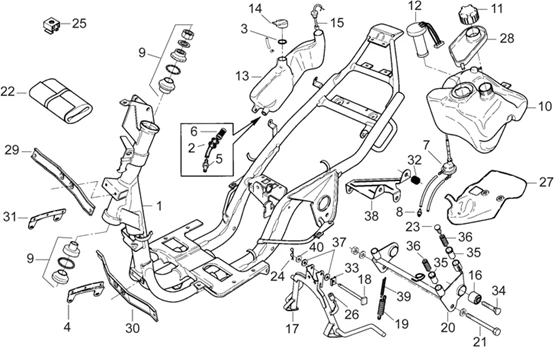

Vehicle Exploded View - APRILIA SR 50 H20 1994-1996

	P2R reference
	Maker reference	AP8232824

Cadre sr 95

	P2R reference	45142
	Maker reference	AP8102223

RUBBER SPACER FOR OIL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA 50-125 -AP8102223

	P2R reference	56840
	Maker reference	AP8220195

GASKET FOR OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA SR 50 1993>2004 -AP8220195

	P2R reference
	Maker reference	AP8232764

SUPPORT GAUCHE

	P2R reference	71166
	Maker reference	AP8101944

2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944-

	P2R reference	71170
	Maker reference	AP8102224

OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224-

	P2R reference	55395
	Maker reference	AP8201824

AP8201824 - ROBINET ESSENCE A DEPRESS.

	P2R reference
	Maker reference	AP8101999

FILTRE ESSENCE (=8101999

	P2R reference	55540
	Maker reference	AP8203666

AP8203666 - SERIE DIRECTION COMPLETE

	P2R reference
	Maker reference	AP8231772

Réservoir bague noir;

	P2R reference
	Maker reference	AP8258808

Réservoir essence

	P2R reference	55386
	Maker reference	AP8201757

AP8201757 - BOUCHON ESSENCE

	P2R reference	56355
	Maker reference	AP8212958

AP8212958 - SONDE NIVEAU ESSENCE

	P2R reference	57972
	Maker reference	AP8230913

AP8230913 - RESERVOIR HUILE;

	P2R reference	56882
	Maker reference	AP8220421

OIL TANK CAP "PIAGGIO GENUINE PART "APRILIA - COMMON FOR ALL 50CC SCOOTERS -AP8220421-

	P2R reference	56269
	Maker reference	AP8212481

AP8212481 - INDICATEUR RESERVE HUILE

	P2R reference	56870
	Maker reference	AP8220376

AP8220376 - SILENTBLOC BIELLE

	P2R reference
	Maker reference	AP8232933

Béquille;

	P2R reference	57049
	Maker reference	AP8221296

AP8221296 - PIVOT BEQUILLE AVEC RONDELLES

	P2R reference	72303
	Maker reference	AP8221204

SPRING - FOR CENTRAL STAND"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO -AP8221204

	P2R reference
	Maker reference	AP8232818

Biellette fixation moteur;

	P2R reference	72300
	Maker reference	AP8221160

AP8221160 - PIVOT SUPPORT MOTEUR

	P2R reference	55380
	Maker reference	AP8201685

AP8201685 - TROUSSE A OUTILS

	P2R reference	72282
	Maker reference	AP8220396

AP8220396 - TIGE

	P2R reference	72133
	Maker reference	AP8201431

AP8201431 - GOUPILLE

	P2R reference	57021
	Maker reference	AP8221213

AP8221213 - ECROU EN CAGE

	P2R reference	56849
	Maker reference	AP8220239

AP8220239 - CAOUTCHOUC

	P2R reference
	Maker reference	AP8231222

PROTECTION ROBINET ESSEN

	P2R reference	56862
	Maker reference	AP8220344

AP8220344 - CUVE COLLECTE ESSENCE

	P2R reference
	Maker reference	AP8232822

SUPPORT BOUCIER H20

	P2R reference
	Maker reference	AP8234093

Support durite eau

	P2R reference
	Maker reference	AP8232763

SUPPORT DROIT

	P2R reference	72305
	Maker reference	AP8221218

AP8221218 - DOUILLE GARDE-BOUE

	P2R reference
	Maker reference	AP8221208

RONDELLE

	P2R reference	57015
	Maker reference	AP8221184

AP8221184 - PIVOT FIXATION BIELLETTE

	P2R reference	72284
	Maker reference	AP8220460

AP8220460 - RONDELLE EN CAOUTCHOUC;

	P2R reference	57022
	Maker reference	AP8221215

AP8221215 - RESSORT BIELLE

	P2R reference	56865
	Maker reference	AP8220366

AP8220366 - CAOUTCHOUC

	P2R reference	58051
	Maker reference	AP8234079

AP8234079 - SUPPORT G-BOUE AR;

	P2R reference	72304
	Maker reference	AP8221211

AP8221211 - RESS.RETOUR BEQ.INT.

	P2R reference	71482
	Maker reference	AP8121697

AP8121697 - RESSORT A GODET
