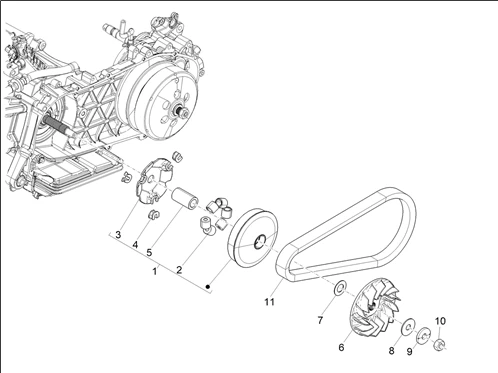

Moteur : 03.24 DEMI-POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1158/SR_COMPACT_GT_125_E5_2021_(EMEA)_03.24.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/0/7/img/195807.jpg)
1 |
CM284808 - ROLLER CONTAINER ASSY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/0/8/img/195808.jpg)
2 |
CM308502 - ROLLER ASSY More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/0/img/66690.jpg)
3 |
VARIATOR ROLLER CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -485710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/8/7/1/img/203871.jpg)
4 |
1A015664 - PATIN More informationQuantity required : 3 |
||||||
|
4 |
1A015664 - PATIN More informationQuantity required : 3 |
||||||
5 |
1A008145 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/8/img/70638.jpg)
6 |
DRIVING HALF PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC INJECTION -876921- More informationQuantity required : 1 |
||||||
|
7 |
1A007071 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/3/img/70743.jpg)
9 |
DRIVING PULLEY SPRING WASHER "PIAGGIO GENUINE PART"COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -880950- More informationQuantity required : 1 |
||||||
|
10 |
B016001 - ECROU HEXAGONAL M12X1.25-6H More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/6/5/img/162765.jpg)
11 |
1A011455 - COURROIE More informationQuantity required : 1 |
