Vehicle Exploded View - APRILIA SR 125 SR COMPACT GT 125 E5 ABS 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

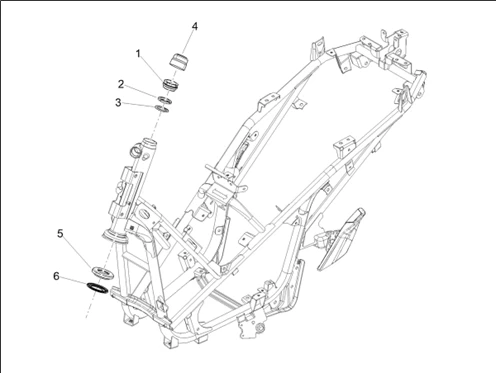

Guidon - commandes : 07.01 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1190/SR_COMPACT_GT_125_E5_ABS_2022_(EMEA)_07.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/1/img/68161.jpg)
1 |
UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/9/img/65339.jpg)
2 |
NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/3/img/63783.jpg)
3 |
STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514- More informationQuantity required : 1 |
||||||
4 |
1B004779 - CAPUCHON DE PROTECTION DES RONDELLES DE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/2/8/img/127528.jpg)
5 |
LOWER HEADSET "PIAGGIO GENUINE PART" 50 LIBERTY IGET 2015>, 125 LIBERTY, MEDLEY, VESPA PRIMAVERA, SPRINT -1C0016085- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/2/9/img/127529.jpg)
6 |
STEERING LOWER PROTECTION RING "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -1C001628 More informationQuantity required : 1 |
