Vehicle Exploded View - GILERA STALKER 50 2008-2011 GILERA

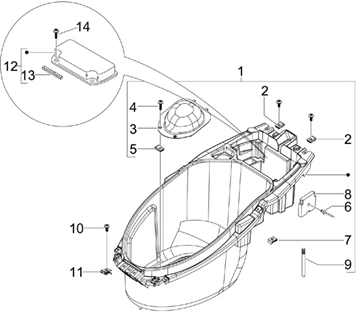

Châssis - parties plastiques - carrosseries : 02.34 LOGEMENT CASQUE - DESSOUS DE SELLE
Logement casque - Dessous de selle
Search
HELMET COMPARTMENT "PIAGGIO GENUINE PART" GILERA 50 STALKER 2000> -299100

1
P2R reference P2R reference 78040
Maker reference Maker reference 299100

HELMET COMPARTMENT "PIAGGIO GENUINE PART" GILERA 50 STALKER 2000> -299100

More information

Quantity required : 1

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

2
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

299317 - FOND COFFRE

3
P2R reference P2R reference 78056
Maker reference Maker reference 299317

299317 - FOND COFFRE

More information

Quantity required : 1

SCREW - 4,2x13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

4
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

More information

Quantity required : 1

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

5
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 1

6
P2R reference P2R reference
Maker reference Maker reference 2975195

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

7
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 5

290405 - SUPPORT

8
P2R reference P2R reference 66242
Maker reference Maker reference 290405

290405 - SUPPORT

More information

Quantity required : 1

GOUPILLE

9
P2R reference P2R reference
Maker reference Maker reference 573530

GOUPILLE

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

10
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

More information

Quantity required : 5

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

11
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 3

BATTERY COVER "PIAGGIO GENUINE PART" 50 STALKER -575993

12
P2R reference P2R reference 80730
Maker reference Maker reference 575993

BATTERY COVER "PIAGGIO GENUINE PART" 50 STALKER -575993

More information

Quantity required : 1

258737 - TAMPON

13
P2R reference P2R reference 162594
Maker reference Maker reference 258737

258737 - TAMPON

More information

Quantity required : 1

SCREW - 4,2x13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

14
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

More information

Quantity required : 2
