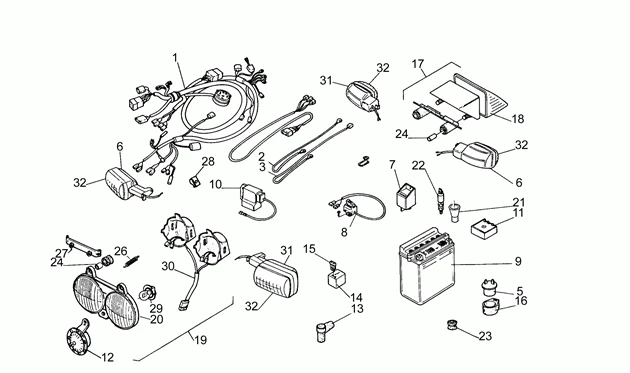

Chassis : 11 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/583/Tuareg_Rally_50_1990-1992_11.PNG)
1 |
FAISCEAU PRINCIPAL |
||||||
|
2 |
Câblage masse-batterie |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
5 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235 More informationQuantity required : 1 |
||||||
|
6 |
AP8112497 - CLIGNOTANT AV.D/AR.G More informationQuantity required : 2 |
||||||
|
7 |
Rele' demarreur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/3/4/img/56334.jpg)
8 |
ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" APRILIA 50 RS, PEGASO, EUROPA, CLASSIC, AF1 -AP8212831- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
9 |
234390 - BATTERIE 12V/4 AH YUASA YB4L-B More informationQuantity required : 1 |
||||||
|
10 |
BOITIER ELECTRONIQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/3/5/img/56235.jpg)
11 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 50 RS 1993>2005, RX 2002>2004, MX 2004>, TUAREG 1990>1992, PEGASO, EUROPA, CLASSIC -AP8212121- More informationQuantity required : 1 |
||||||
|
12 |
AVERTISSEUR |
||||||
|
13 |
Pipe bougie |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/3/7/img/56237.jpg)
14 |
AP8212143 - BLOC FUSIBLES/DIODE More informationQuantity required : 1 |
||||||
|
15 |
CM225607 - FUSIBLE More informationQuantity required : 1 |
||||||
|
16 |
AP8212165 - SUPPORT BUZZER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/5/9/img/45859.jpg)
17 |
TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX, MX, 50 PEGASO, TUAREG -AP8112531 More informationQuantity required : 1 |
||||||
|
18 |
AP8112633 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
19 |
PHARE AVANT |
||||||
|
20 |
GROUP OPTIQUE |
||||||
|
21 |
AP8120482 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
22 |
Interrupteur stop sans écrou |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
23 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
24 |
AP8121718 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/3/img/46923.jpg)
26 |
AP8121710 - RES. HELIC. COMPR More informationQuantity required : 1 |
||||||
|
27 |
SUPPORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
28 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 10 |
||||||
|
29 |
SUPP.AMPOULE 309015 |
||||||
|
30 |
CABLE FEU AVANT |
||||||
|
31 |
Clignotant avant |
||||||
|
32 |
AP8112626 - CABOCHON More informationQuantity required : 4 |
