Vehicle Exploded View - APRILIA TUONO 660 4T 8V E5 ABS 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

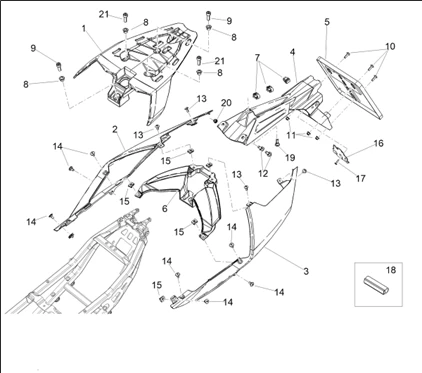

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1311/Tuono_660_4T_8V_E5_ABS_2023_(EMEA)_02.14.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/2/4/img/171524.jpg)
1 |
2B006651 - REAR HANDLE More informationQuantity required : 1 |
|||||||||
2 |
2B006647000YR4 - QUEUE D, ROUGE More informationQuantity required : 1 |
|||||||||
|
2 |
2B006647000G38 - BAVETTE ARRIèRE D V. More informationQuantity required : 1 |
|||||||||
|
2 |
2B006647 - BAVETTE D More informationQuantity required : 1 |
|||||||||
|
3 |
2B006648000YR4 - QUEUE G, ROUGE More informationQuantity required : 1 |
|||||||||
|
3 |
2B006648000G38 - BAVETTE ARRIèRE D V. More informationQuantity required : 1 |
|||||||||
|
3 |
2B006648 - BAVETTE G More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/2/5/img/171525.jpg)
4 |
2B006649 - LICENSE PLATE SUPPORT More informationQuantity required : 1 |
|||||||||
|
5 |
895914 - PORTE-PLAQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/8/3/6/img/174836.jpg)
6 |
2B007364 - INNER TAIL COVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
7 |
AP8201727 - GUIDE-CABLE NOIR More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/8/3/7/img/174837.jpg)
8 |
2B007778 - FLANGED BUSH More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
9 |
AP8152287 - VIS BRIDE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
10 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 3 |
|||||||||
|
11 |
AP81523066 - SELF-LOCKING NUT M5-DIN 6926 Z.B. More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
12 |
CM179302 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
13 |
SCREW - FOR FAIRINGS FASTENING (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA + MOTO-GUZZI V7-V9 -896174- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
14 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
15 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 4 |
|||||||||
|
16 |
2B006641 - LICENSE PLATE INTERNAL COVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
17 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 1 |
|||||||||
|
18 |
2B008368 - ADHESIVE GASKET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
19 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
20 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/4/7/7/img/178477.jpg)
21 |
2B002570 - VIS More informationQuantity required : 2 |
|||||||||
|
21 |
AP8152287 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
