Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E5 Superpole 2021-22 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

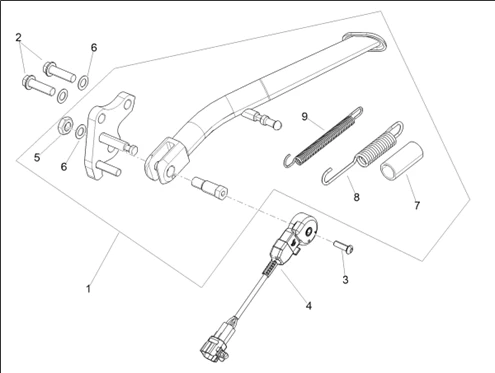

Châssis/coque : 01.03 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1330/Tuono_V4_Factory_1100_E5_Superpole_2021-22_EMEA_01.03.png)
1 |
2B007254 - BEQUILLE LATERALE COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/5/img/71965.jpg)
2 |
AP8152318 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
3 |
AP8152137 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/0/0/img/171500.jpg)
4 |
2D000530 - SIDE STAND SWITCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
5 |
NUT - FOR SIDE STAND (10X1,25) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8152001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
6 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
7 |
SIDE STAND SPRING COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8102524 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
8 |
SPRING - FOR CENTRAL STAND"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO -AP8221204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
9 |
AP8221211 - RESS.RETOUR BEQ.INT. More informationQuantity required : 1 |
