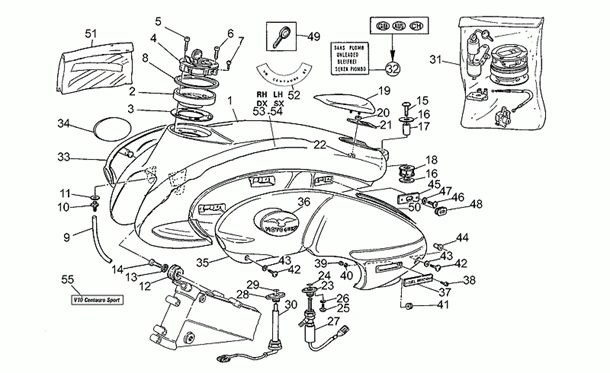

Chassis : 33.20 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/920/V_10_Centauro_1000_1997-1999_33.20.png)
1 |
|
||||||
|
1 |
GU02100201 - RESERVOIR ESS.ROUGE MET. More informationQuantity required : 1 |
||||||
|
1 |
GU02100211 - RESERVOIR ESS.ANTHRACITE More informationQuantity required : 1 |
||||||
|
1 |
GU02100212 - RESERVOIR ESS.JAUNE More informationQuantity required : 1 |
||||||
|
1 |
GU02100230 - RESERVOIR ESS.RED FIRE More informationQuantity required : 1 |
||||||
|
1 |
|
||||||
|
2 |
GU02102300 - FLANGIA More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
3 |
GU02102400 - JOINT More informationQuantity required : 1 |
||||||
|
4 |
GU01103960 - TAPPO SERBATOIO More informationQuantity required : 1 |
||||||
|
5 |
GU98620230 - VIS M5X30 More informationQuantity required : 3 |
||||||
|
6 |
GU98622210 - VIS M5X10 More informationQuantity required : 3 |
||||||
|
7 |
GU98622215 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/0/img/71420.jpg)
8 |
FUEL CAP SEAL GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120893 More informationQuantity required : 1 |
||||||
|
9 |
GU00823944050 - TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
|
10 |
GU30103730 - RACCORD More informationQuantity required : 1 |
||||||
|
11 |
GU30104630 - JOINT More informationQuantity required : 1 |
||||||
|
12 |
GU66103415 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
13 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
14 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 2 |
||||||
|
15 |
GU98230845 - VIS More informationQuantity required : 1 |
||||||
|
16 |
GU95100239 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
GU91180824 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
18 |
GU02107100 - GOMMINO More informationQuantity required : 1 |
||||||
|
19 |
GU02466200 - PROTEZIONE SERBATOIO More informationQuantity required : 1 |
||||||
|
20 |
GU91180605 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
21 |
|
||||||
|
22 |
GU92630206 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
23 |
GU01101830 - FLANGIA More informationQuantity required : 1 |
||||||
|
24 |
GU90706116 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
25 |
GU98230510 - VIS M5X10 More informationQuantity required : 4 |
||||||
|
26 |
GU29217960 - RONDELLE 5,9X3X0,8 More informationQuantity required : 4 |
||||||
|
27 |
GU03105300 - SOUPAPE CARBURANT More informationQuantity required : 1 |
||||||
|
28 |
GU02101800 - BRIDE More informationQuantity required : 1 |
||||||
|
29 |
GU90706171 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
30 |
GU01103001 - SONDE NIVEAU ESSENCE More informationQuantity required : 1 |
||||||
|
30 |
GU03103000 - SONDA LIVELLO BENZ. More informationQuantity required : 1 |
||||||
|
31 |
GU02736800 - KIT SERRATURE More informationQuantity required : 1 |
||||||
|
32 |
GU29995735 - DECALCOMANIE More informationQuantity required : 1 |
||||||
|
33 |
GU02570200 - FIANCATINA DX GREZZO More informationQuantity required : 1 |
||||||
|
33 |
GU02570201 - FIANCATINA DX ARGENTO More informationQuantity required : 1 |
||||||
|
33 |
|
||||||
|
33 |
GU02570230 - FLANC D RED FIRE More informationQuantity required : 1 |
||||||
|
33 |
GU02570231 - FIANCATINA DX VERDE More informationQuantity required : 1 |
||||||
|
34 |
GU02917300 - "DECALCO D ""MOTO GUZZI""" More informationQuantity required : 1 |
||||||
|
35 |
GU02570404 - FIANCATINA SX ARGENTO More informationQuantity required : 1 |
||||||
|
35 |
GU02570403 - PANNEAU LATERAL GAUCHE BRUT More informationQuantity required : 1 |
||||||
|
35 |
|
||||||
|
35 |
GU02570433 - FLANC G.VERT More informationQuantity required : 1 |
||||||
|
36 |
GU02917400 - DECALCO SX"MOTO GUZZI" More informationQuantity required : 1 |
||||||
|
37 |
GU02586001 - "DECALCO ""FUEL INJECTION""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/1/8/img/133018.jpg)
38 |
GU98280311 - VIS More informationQuantity required : 4 |
||||||
|
39 |
GU92601003 - ECROU More informationQuantity required : 4 |
||||||
|
40 |
GU95000203 - RONDELLE More informationQuantity required : 4 |
||||||
|
41 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/5/img/73565.jpg)
42 |
GU98370515 - VIS More informationQuantity required : 4 |
||||||
|
43 |
GU30577800 - RONDELLE NYLON 5,5X12X1 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/9/2/img/132592.jpg)
44 |
GU93231605 - DOUILLE ANTI VIBRATION More informationQuantity required : 2 |
||||||
|
45 |
GU02103600 - PIASTRINA More informationQuantity required : 6 |
||||||
|
46 |
GU98230510 - VIS M5X10 More informationQuantity required : 12 |
||||||
|
47 |
GU29217960 - RONDELLE 5,9X3X0,8 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/2/8/4/img/102284.jpg)
48 |
GU02573900 - GOMMINO More informationQuantity required : 6 |
||||||
|
49 |
GU30735500 - CLE PAS CANTEE BRUT More informationQuantity required : 1 |
||||||
|
50 |
GU02573800 - GUARNIZIONE More informationQuantity required : 2 |
||||||
|
51 |
GU02923330 - "DECALCO-SERIE ""SPORT""" More informationQuantity required : 1 |
||||||
|
52 |
GU02924010 - "DECALCO ""CENTAURO GT""" More informationQuantity required : 1 |
||||||
|
53 |
GU02923530 - DECALCO BLANCHE D More informationQuantity required : 1 |
||||||
|
54 |
GU02923630 - DECALCO BLANCHE G More informationQuantity required : 1 |
||||||
|
55 |
|
