Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello S E5 ABS 2022-2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

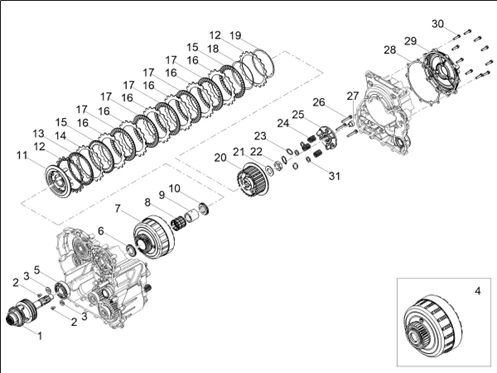

Moteur : 03.230 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1309/V100_Mandello_S_E5_ABS_2022-2024_(EMEA)_03.230.png)
1 |
1A022926 - COMPLETE FLEXIBLE COUPLING More informationQuantity required : 1 |
||||||
|
1 |
1A024356 - ACCOUPLEMENT FLEXIBLE More informationQuantity required : 1 |
||||||
|
2 |
B013608 - VIS More informationQuantity required : 2 |
||||||
|
3 |
2A001454 - RONDELLE éVASéE More informationQuantity required : 2 |
||||||
|
4 |
2A001478 - CLUTCH ASSEMBLY More informationQuantity required : 1 |
||||||
|
4 |
1A026316 - EMBRAYAGE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/0/1/6/img/43016.jpg)
5 |
898634 - ROULEMENT More informationQuantity required : 1 |
||||||
|
6 |
B018628 - RONDELLE ENTRETOISE More informationQuantity required : 1 |
||||||
|
6 |
1A024353 - RONDELLE ENTRETOISE More informationQuantity required : 1 |
||||||
|
7 |
2A001369 - CLOCHE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
7 |
1A026315 - CLOCHE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
8 |
974361 - CAGE A AIGUILLE 35X40X35,8 More informationQuantity required : 1 |
||||||
|
8 |
1A024352 - CAGE A ROULEAUX More informationQuantity required : 2 |
||||||
|
9 |
2A001379 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
9 |
1A024351 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
10 |
1A024472 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
10 |
1A025865 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
11 |
2A001393 - PLATEAU D'EMBRAYAGE More informationQuantity required : 1 |
||||||
|
11 |
1A025861 - PLATEAU D'EMBRAYAGE More informationQuantity required : 1 |
||||||
|
12 |
2A001395 - DISQUE EMBR.MENé More informationQuantity required : 2 |
||||||
|
13 |
2A001399 - DISQUE EMBR.MENANT More informationQuantity required : 1 |
||||||
|
14 |
2A001396 - DISQUE EMBR.MENé More informationQuantity required : 1 |
||||||
|
15 |
2A001392 - DISQUE EMBR.MENANT More informationQuantity required : 2 |
||||||
|
16 |
2A001397 - DISQUE EMBR.MENé More informationQuantity required : 6 |
||||||
|
17 |
2A001398 - DISQUE EMBR.MENANT More informationQuantity required : 5 |
||||||
|
18 |
2A001446 - RESSORT A GODET More informationQuantity required : 1 |
||||||
|
19 |
2A001445 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
20 |
2A001394 - MOYEU EMBRAYAGE More informationQuantity required : 1 |
||||||
|
20 |
1A025862 - MOYEU EMBRAYAGE More informationQuantity required : 1 |
||||||
|
21 |
2A001381 - RONDELLE D'EPAULEMENT More informationQuantity required : 1 |
||||||
|
21 |
2A001266 - RONDELLE D'éPAULEMENT More informationQuantity required : 1 |
||||||
|
22 |
2A001278 - ÉCROU HEXAGONAL More informationQuantity required : 1 |
||||||
|
23 |
2A001300 - SUPPORT RESSORT A LAMES More informationQuantity required : 3 |
||||||
|
24 |
2A001336 - RESSORT More informationQuantity required : 3 |
||||||
|
24 |
1A026493 - RESSORT More informationQuantity required : 3 |
||||||
|
25 |
2A001368 - DISQUE More informationQuantity required : 1 |
||||||
|
25 |
1A025859 - PLATEAU D'EMBRAYAGE More informationQuantity required : 1 |
||||||
|
26 |
2A001298 - VIS TE BRIDEE M6X40 More informationQuantity required : 3 |
||||||
|
26 |
1A025864 - FLANGE HEAD SCREW More informationQuantity required : 3 |
||||||
|
27 |
2A001233 - PIN FOR PREASSURE PLATE More informationQuantity required : 1 |
||||||
|
27 |
1A024339 - PIN FOR PREASSURE PLATE More informationQuantity required : 1 |
||||||
|
28 |
1A025092 - JOINT COUVERCLE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
29 |
1A024547 - COUVERCLE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
29 |
1A025799 - COUVERCLE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
30 |
874549 - VIS BRIDE More informationQuantity required : 10 |
||||||
|
31 |
1A024433 - ENTRETOISE More informationQuantity required : 3 |
||||||
|
31 |
1A026431 - GODET DE RESSORT More informationQuantity required : 3 |
