Vehicle Exploded View - MOTO-GUZZI V35 350 II 350 1981-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

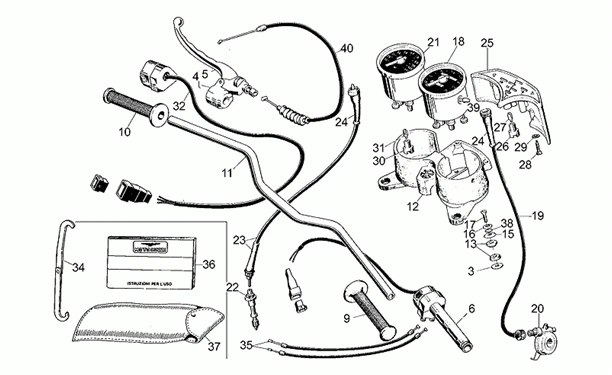

Chassis : 33.06 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/526/V35_II_350_1981-1985_33.06.PNG)
3 |
GU95004215 - RONDELLE PLATE More informationQuantity required : 2 |
||||||
|
4 |
GU19605501 - COMMANDE LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
5 |
GU19605501 - COMMANDE LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
9 |
|
||||||
|
10 |
GU65603000 - POIGNEE GC. More informationQuantity required : 1 |
||||||
|
11 |
Guidon |
||||||
|
12 |
GU19501500 - SUPPORT INSTRUMENTS More informationQuantity required : 1 |
||||||
|
13 |
Silent block |
||||||
|
15 |
GU95090142 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
GU18577850 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
|
||||||
|
18 |
GU19761500 - COMPTEUR KM More informationQuantity required : 1 |
||||||
|
19 |
GU61760440 - TRANSMISSION TACHYMETRE More informationQuantity required : 1 |
||||||
|
20 |
GU39762501 - RENVOI COMPTEUR KM More informationQuantity required : 1 |
||||||
|
21 |
|
||||||
|
22 |
GU14769200 - RENVOI Z=14 More informationQuantity required : 1 |
||||||
|
23 |
GU19768100 - TRANSMISSION COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
24 |
GU17762200 - GAINE More informationQuantity required : 2 |
||||||
|
25 |
Support |
||||||
|
26 |
Porte-ampoule |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
27 |
LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634- More informationQuantity required : 7 |
||||||
|
28 |
|
||||||
|
29 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
30 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
31 |
294131 - AMPOULE 12V 3W More informationQuantity required : 2 |
||||||
|
32 |
GU23738001 - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
34 |
|
||||||
|
35 |
GU19117580 - CABLE GAZ More informationQuantity required : 2 |
||||||
|
36 |
|
||||||
|
36 |
|
||||||
|
36 |
|
||||||
|
36 |
MANUEL D ENTRETIEN |
||||||
|
37 |
TROUSSE OUTILS |
||||||
|
38 |
GU45212400 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
39 |
GU19762810 - POUSSOIR RAZ More informationQuantity required : 1 |
||||||
|
40 |
GU19093052 - CABLE EMBRAYAGE More informationQuantity required : 1 |
