Vehicle Exploded View - MOTO-GUZZI V35 350 V50 Acc Elettronica 350-500 1977-1980
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

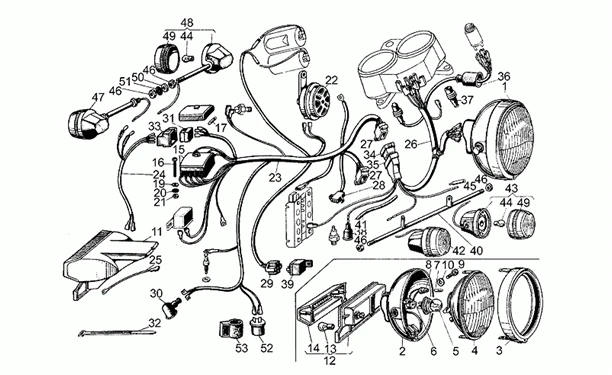

Chassis : 33.03 PHARES-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/525/V35_V50_Acc_Elettronica_350-500_1977-1980_33.03.PNG)
1 |
GU28740533 - FEU AVANT More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
3 |
GU19740454 - CADRE PHARE More informationQuantity required : 1 |
||||||
|
4 |
|
||||||
|
5 |
GU93450231 - LAMPE (OU AMPOULE) 12V 45/40W More informationQuantity required : 1 |
||||||
|
6 |
Bloc démarreur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
7 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 1 |
||||||
|
8 |
GU17740405 - PORTE AMPOULE More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
|
||||||
|
11 |
|
||||||
|
12 |
FEU ARRIER |
||||||
|
13 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 2 |
||||||
|
14 |
Glace phare AR |
||||||
|
15 |
Boîte à fusibles |
||||||
|
17 |
GU17742550 - FUSIBLE 16A More informationQuantity required : 6 |
||||||
|
18 |
|
||||||
|
19 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
21 |
GU92602205 - ECROU More informationQuantity required : 2 |
||||||
|
22 |
Klaxon |
||||||
|
23 |
FAISCEAU PRINCIPAL |
||||||
|
24 |
FAISCEAU PRINCIPAL |
||||||
|
25 |
|
||||||
|
26 |
|
||||||
|
27 |
CONNECTEUR |
||||||
|
28 |
|
||||||
|
29 |
|
||||||
|
30 |
GU12735100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
31 |
|
||||||
|
32 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 2 |
||||||
|
33 |
|
||||||
|
34 |
GU61740551 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
35 |
GU35755780 - CAPUCHON More informationQuantity required : 1 |
||||||
|
36 |
|
||||||
|
37 |
|
||||||
|
38 |
GU12717600 - CAPUCHON More informationQuantity required : 1 |
||||||
|
39 |
GU19732500 - RELAIS DEMARRAGE More informationQuantity required : 1 |
||||||
|
40 |
|
||||||
|
41 |
|
||||||
|
42 |
|
||||||
|
43 |
|
||||||
|
44 |
|
||||||
|
45 |
|
||||||
|
46 |
GU92602411 - ECROU More informationQuantity required : 4 |
||||||
|
47 |
|
||||||
|
48 |
|
||||||
|
49 |
|
||||||
|
50 |
|
||||||
|
51 |
GU95022110 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
52 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
53 |
GU17751200 - BLOC More informationQuantity required : 1 |
