Vehicle Exploded View - MOTO-GUZZI V7 750 Racer 750 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

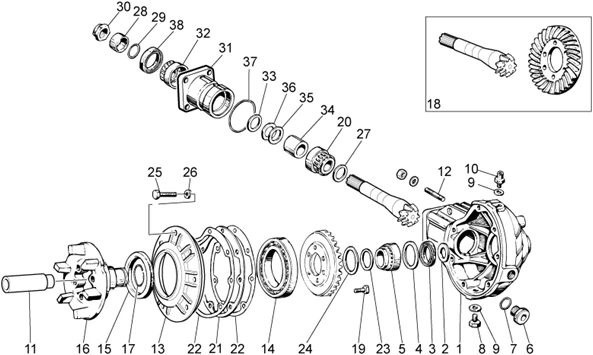

Moteur : 34.10 TRANSMISSION CPL. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/537/V7_Racer_750_2014_34.10.PNG)
1 |
9766085 - SCATOLA TRASMISSIONE NERA More informationQuantity required : 1 |
||||||
|
2 |
GU19351900 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/8/6/img/132186.jpg)
3 |
GASKET FOR CLUTCH SHAFT (35X47X7) "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, BELLAGIO, GRISO, NORGE, V7, NEVADA, SPORT -GU90403549- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/8/6/img/129586.jpg)
4 |
GU19351100 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/3/8/img/132438.jpg)
5 |
TRANSMISSION BEARING (35X50X17) "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU92252235 More informationQuantity required : 1 |
||||||
|
6 |
OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
7 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
8 |
OIL DRAIN CAP/TRANSMISSION DRAIN CAP "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI -GU31003766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
9 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO -GU01528930 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/4/8/7/img/126487.jpg)
10 |
FILL CAP FOR GEARBOX OR TRANSMISSION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, V30, V50, V65 -GU19206501 More informationQuantity required : 1 |
||||||
|
11 |
GU32633560 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/2/1/img/132821.jpg)
12 |
GU96508055 - VIS SANS TETE More informationQuantity required : 4 |
||||||
|
13 |
GU32350410 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/2/img/132382.jpg)
14 |
TRANSMISSION BEARING (70X10X13) "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU92201070- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/9/8/img/132198.jpg)
15 |
GASKET FOR TRANSMISSION HOUSING (75X95X10) "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, BREVA, NEVADA -GU90407591- More informationQuantity required : 1 |
||||||
|
16 |
GU32351410 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/5/img/132155.jpg)
17 |
GU90353030 - BAGUE DE BUTEE More informationQuantity required : 1 |
||||||
|
18 |
GU32354610 - COUPLE CONIQUE 8/33 More informationQuantity required : 1 |
||||||
|
19 |
GU03067730 - VITE M8X25 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/2/7/img/132427.jpg)
20 |
BEARING FOR TRANSMISSION SHAFT (24X5) "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU92249227- More informationQuantity required : 1 |
||||||
|
21 |
GU19355400 - CALE 0,8 MM More informationQuantity required : 1 |
||||||
|
21 |
GU19355402 - CALE 0,9 MM More informationQuantity required : 1 |
||||||
|
21 |
GU19355404 - CALE 1 MM More informationQuantity required : 1 |
||||||
|
21 |
GU19355406 - CALE 1,1 MM More informationQuantity required : 1 |
||||||
|
21 |
GU19355408 - CALE 1,2 MM More informationQuantity required : 1 |
||||||
|
21 |
GU19355410 - CALE 1,3 MM More informationQuantity required : 1 |
||||||
|
21 |
GU19355411 - CALE 1,4 MM More informationQuantity required : 1 |
||||||
|
21 |
GU19355412 - CALE 1,5 MM More informationQuantity required : 1 |
||||||
|
21 |
GU19355413 - CALE 1,6 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/8/5/img/129585.jpg)
22 |
GASKET FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU19350700- More informationQuantity required : 2 |
||||||
|
23 |
GU19352300 - RONDELLE EVENTAIL More informationQuantity required : 1 |
||||||
|
24 |
GU19353500 - RONDELLE EVENTAIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/2/8/img/129628.jpg)
25 |
GU19357660 - VIS M8X25 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
26 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 7 |
||||||
|
27 |
GU19355325 - CALE 1,5 MM More informationQuantity required : 1 |
||||||
|
27 |
GU19355326 - CALE 1,6 MM More informationQuantity required : 1 |
||||||
|
27 |
GU19355327 - CALE 1,7 MM More informationQuantity required : 1 |
||||||
|
27 |
GU19355328 - CALE 1,8 MM More informationQuantity required : 1 |
||||||
|
27 |
GU19355329 - CALE 1,9 MM More informationQuantity required : 1 |
||||||
|
27 |
GU19355320 - CALE 1 MM More informationQuantity required : 1 |
||||||
|
27 |
GU19355321 - CALE 1,1 MM More informationQuantity required : 1 |
||||||
|
27 |
GU19355322 - CALE 1,2 MM More informationQuantity required : 1 |
||||||
|
27 |
GU19355323 - CALE 1,3 MM More informationQuantity required : 1 |
||||||
|
27 |
GU19355324 - CALE 1,4 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/2/7/img/129627.jpg)
28 |
SPACER- FOR DRIVE SHAFT "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, -GU19356801 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/3/img/132223.jpg)
29 |
GASKET RING- BEVEL GEAR (18,77X1,78) "PIAGGIO GENUINE PART" MOTO GUZZI -GU90706188 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/2/5/img/129625.jpg)
30 |
NUT FOR TRANSMISSION GEAR "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA -GU19356700 More informationQuantity required : 1 |
||||||
|
31 |
GU20352421 - FLASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/2/5/img/132425.jpg)
32 |
ROLLERS BEARING (20X47X14) "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, -GU92249220 More informationQuantity required : 1 |
||||||
|
33 |
GU19355300 - CALE 1 MM More informationQuantity required : 1 |
||||||
|
33 |
GU19355301 - CALE 1,1 MM More informationQuantity required : 1 |
||||||
|
33 |
GU19355302 - CALE 1,2 MM More informationQuantity required : 1 |
||||||
|
33 |
GU19355303 - CALE 1,3 MM More informationQuantity required : 1 |
||||||
|
33 |
GU19355304 - CALE 1,4 MM More informationQuantity required : 1 |
||||||
|
33 |
GU19355305 - CALE 1,5 MM More informationQuantity required : 1 |
||||||
|
33 |
GU19355306 - CALE 1,6 MM More informationQuantity required : 1 |
||||||
|
33 |
GU19355307 - CALE 1,7 MM More informationQuantity required : 1 |
||||||
|
33 |
GU19355308 - CALE 1,8 MM More informationQuantity required : 1 |
||||||
|
33 |
GU19355309 - CALE 1,9 MM More informationQuantity required : 1 |
||||||
|
34 |
GU20355121 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
35 |
GU19355200 - RONDELLE AJUSTEM.0,1 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/9/4/img/129594.jpg)
36 |
GU19355202 - RONDELLE AJUSTEM.0,15 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/8/img/132248.jpg)
37 |
GU90706584 - JOINT 58,42X2,62 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/8/2/img/132182.jpg)
38 |
GASKET RING FOR TRANSMISSION SHAFT (32X47X10) "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA -GU90403251- More informationQuantity required : 1 |
