Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Sport 850 E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

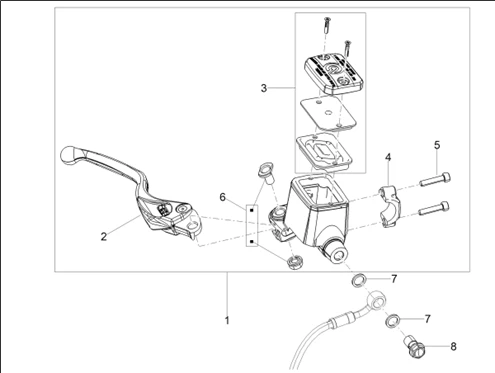

Système de freinage : 06.01 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1303/V7_Sport_850_E5_ABS_2025_(EMEA)_06.01.png)
1 |
2B013814 - POMPE FREIN AV CPL. More informationQuantity required : 1 |
||||||
|
2 |
2B014844 - LEVIER More informationQuantity required : 1 |
||||||
|
3 |
2B014846 - BOUCHON More informationQuantity required : 1 |
||||||
|
4 |
2B007206 - CAVALIER More informationQuantity required : 1 |
||||||
|
5 |
2B014932 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
6 |
2B009816 - PIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
7 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
|
8 |
2B011672R - SPECIAL SCREW More informationQuantity required : 1 |
