Vehicle Exploded View - MOTO-GUZZI V9 850 Roamer 850 E5 ABS 2021-2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

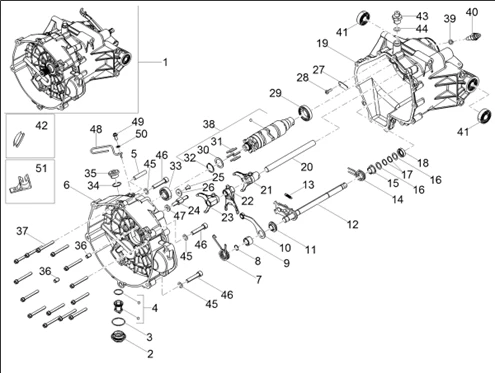

Moteur : 03.17 BOÎTE DE VITESSES / SELECTEUR / DESMODROMIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1282/V9_Roamer_850_E5_ABS_2021-2022_(EMEA)_03.17.png)
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/8/6/img/111986.jpg)
2 |
B015598 - BOUCHON FILTRE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/7/2/6/img/172726.jpg)
3 |
1A016739 - O-RING GASKET 31.47X1.78 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/7/4/img/72774.jpg)
4 |
B018020 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
5 |
B064079 - PERNO FILETTATO More informationQuantity required : 1 |
||||||
|
6 |
2A0011185 - CLUTCH HOUSING WITH I.P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/2/7/3/img/101273.jpg)
7 |
B064113 - MOLLA INDEX More informationQuantity required : 1 |
||||||
|
8 |
GU90353014 - VIS More informationQuantity required : 1 |
||||||
|
9 |
GU05234230 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
10 |
B064112 - LEVA INDEX COMPLETA More informationQuantity required : 1 |
||||||
|
11 |
GU05238431 - BAGUE More informationQuantity required : 1 |
||||||
|
12 |
1A018912 - PRESELECTEUR COMPLET More informationQuantity required : 1 |
||||||
|
13 |
GU05238231 - RESSORT More informationQuantity required : 1 |
||||||
|
14 |
B063956 - (*)MOLLA RICHIAMO PRESELETTORE More informationQuantity required : 1 |
||||||
|
15 |
2A000467 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
16 |
GU05239330 - BUTEE More informationQuantity required : 2 |
||||||
|
17 |
GU90271014 - BAGUE SEEGER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/8/img/132158.jpg)
18 |
GU90401424 - BAGUE D'ETANCHEITE 14X24X7 More informationQuantity required : 1 |
||||||
|
19 |
2A0011165 - GEARBOX HOUSING More informationQuantity required : 1 |
||||||
|
20 |
2A000224 - ASTA GUIDA FORCELLINI More informationQuantity required : 1 |
||||||
|
21 |
2A000226 - FORCHETTA 2A - 3A More informationQuantity required : 1 |
||||||
|
22 |
2A000227 - FORCHETTA 5A - 6A More informationQuantity required : 1 |
||||||
|
23 |
2A000225 - FORCELLA PER ALBERO SECONDARIO More informationQuantity required : 1 |
||||||
|
24 |
2A001139 - PIN FOR GEAR SELECTOR More informationQuantity required : 1 |
||||||
|
25 |
B013608 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/0/8/img/70508.jpg)
26 |
873905 - RONDELLE More informationQuantity required : 1 |
||||||
|
27 |
2A000306 - PIASTRINA More informationQuantity required : 1 |
||||||
|
28 |
2A000241 - VITE SPECIALE TORX TC M5X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/4/img/69754.jpg)
29 |
857250 - ROULEMENT A BILLES 61905 - 25X42X9 More informationQuantity required : 1 |
||||||
|
30 |
GU05235531 - CALE More informationQuantity required : 1 |
||||||
|
31 |
2A000938 - TIGE More informationQuantity required : 6 |
||||||
|
32 |
GU90271022 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
33 |
834764 - ROULEMENT A BILLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
34 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 1 |
||||||
|
35 |
OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600- More informationQuantity required : 1 |
||||||
|
36 |
GU19002020 - BAGUE 6,6X9X13 More informationQuantity required : 2 |
||||||
|
37 |
2A000591 - VIS More informationQuantity required : 14 |
||||||
|
38 |
2A001047 - GEAR SELECTOR BARREL WITH I.P. More informationQuantity required : 1 |
||||||
|
39 |
B063025 - GUARNIZIONE 8,7X14.2X1.3 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/8/2/0/img/156820.jpg)
40 |
1A011654 - INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
41 |
2A000097 - CUSCINETTO A SFERE 6202-2RSH/C3 LHT23 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
42 |
GU93180220 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/5/2/img/146152.jpg)
43 |
2A000823 - BOUCHON PURGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
44 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO -GU01528930 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
45 |
658837 - RONDELLE More informationQuantity required : 6 |
||||||
|
46 |
GU98680440 - VIS TCEI M8X40 More informationQuantity required : 6 |
||||||
|
47 |
2A001050 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
48 |
2B001138 - PASSACAVO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
49 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
50 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 1 |
||||||
|
51 |
2B001770 - PASSACAVO More informationQuantity required : 1 |
