Vehicle Exploded View - DERBI VARIANT COURIER 50 VARIANT COURIER 2007 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

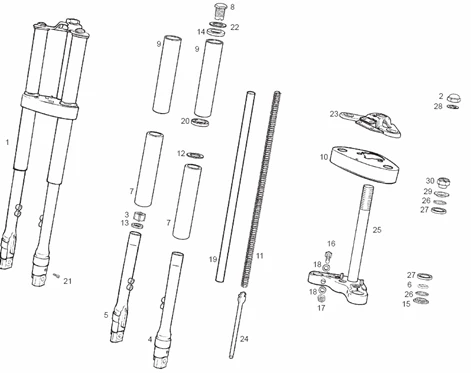

Suspensions - roues : 3 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1062/VARIANT_COURIER_2007_E2_3.png)
1 |
00F02074711 - R-CTO.HORQ.DIR.VRNT.BNLX. More informationQuantity required : 1 |
||||||
|
2 |
00F00200111 - ECROU BORGNE FIX.TUBE NOIRE More informationQuantity required : 1 |
||||||
|
3 |
00A00210201 - CAOUT. BUTEE FOURCHE More informationQuantity required : 1 |
||||||
|
4 |
00F00203124 - JAMBE FOURCHE,GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
00F00201134 - JAMBE FOURCHE, DROITE More informationQuantity required : 1 |
||||||
|
6 |
00D03700071 - JOINT BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
7 |
00F00200235 - GUARDAP.HORQ.NG.INY.SP.COUR99 More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
|
9 |
00F00211877 - TUBE More informationQuantity required : 1 |
||||||
|
10 |
00A02000569 - COUVRE PLETINE INF. NOIR More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
|
12 |
|
||||||
|
13 |
|
||||||
|
14 |
|
||||||
|
15 |
|
||||||
|
16 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/7/img/63587.jpg)
17 |
00000021080 - ECROU INDESSERABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
18 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
|
19 |
00F00200191 - TUBE More informationQuantity required : 1 |
||||||
|
20 |
|
||||||
|
21 |
|
||||||
|
22 |
00F00200631 - RONDELLE More informationQuantity required : 1 |
||||||
|
23 |
00F00204091 - PLATINE SUP. More informationQuantity required : 1 |
||||||
|
24 |
|
||||||
|
25 |
00F00210011 - PLATINE INFERIEURE + TIGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/7/img/63607.jpg)
26 |
00000061040 - BILLE DIAMETRE 4,76. More informationQuantity required : 1 |
||||||
|
27 |
|
||||||
|
28 |
|
||||||
|
29 |
|
||||||
|
30 |
|
