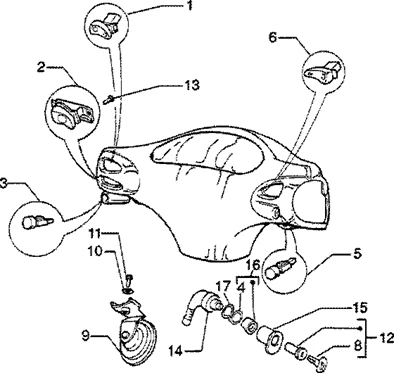

Vehicle Exploded View - VESPA VESPA ET2 50 1998-2005

	P2R reference	77820
	Maker reference	294877

HEADLIGHT SELECTOR SWITCH "PIAGGIO GENUINE PART" 125 VESPA GTS, 50-125 VESPA LX, VESPA-S -294877

	P2R reference
	Maker reference	580155

FAISCEAU CABLES

	P2R reference
	Maker reference	583021

FAISCEAU CABLES

	P2R reference	81854
	Maker reference	583023

583023 - CABLEAU

	P2R reference	82076
	Maker reference	584540

584540 - FAISCEAU DE CABLES

	P2R reference	77804
	Maker reference	294723

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, 125 VESPA GTS -294723-

	P2R reference	65970
	Maker reference	234390

234390 - BATTERIE 12V/4 AH YUASA YB4L-B

	P2R reference
	Maker reference	497408

BATTERIE FIAMM 12V4A FTX4L-BS

	P2R reference	67177
	Maker reference	58058R

HORN SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT . LEFT -58058R--

	P2R reference	67203
	Maker reference	58115R

RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R-

	P2R reference	66309
	Maker reference	298838

KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298838

	P2R reference	65380
	Maker reference	0155585

015558 - VIS

	P2R reference	67176
	Maker reference	58057R

ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO -58057R

	P2R reference	65416
	Maker reference	0164065

016406 - RONDELLE S01640600

	P2R reference	77703
	Maker reference	293571

LIGHTS SWITCH "PIAGGIO GENUINE PART" 50-125 LIBERTY, SFERA, 125 VESPA GTS 2017> -293571-

	P2R reference	84841
	Maker reference	623512

623512 - BOUCHON

	P2R reference	63777
	Maker reference	0030565

003056 - RONDELLE

	P2R reference	206088
	Maker reference	1D004175R

CENTRALE CLIGNOTANTE 2 BROCHES ORIGINE PIAGGIO COMMUN A LA GAMME -1D002376-

	P2R reference	206088
	Maker reference	1D002376

CENTRALE CLIGNOTANTE 2 BROCHES ORIGINE PIAGGIO COMMUN A LA GAMME -1D002376-

	P2R reference	118839
	Maker reference	1E000357R

FLASHER UNIT "PIAGGIO GENUINE PART" 125 TYPHOON, HEXAGON, SKIPPER, 50 VESPA ET2/GILERA 50-125 RUNNER -1E000357R

	P2R reference	80288
	Maker reference	573960

KEYBLANK "PIAGGIO GENUINE PART" 50 VESPA-S, VESPA LX, PRIMAVERA, SPRINT -573960

	P2R reference	66246
	Maker reference	291017

291017 - SUPPORT

	P2R reference	67172
	Maker reference	58034R

HORN "PIAGGIO GENUINE PART" 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -58034R-

	P2R reference	95609
	Maker reference	CM071804

CM071804 - AVERTISSEUR

	P2R reference	66004
	Maker reference	252945

252945 - FUSIBLE 7,5A

	P2R reference	65416
	Maker reference	0164065

016406 - RONDELLE S01640600

	P2R reference	77603
	Maker reference	290402

FUSE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 1998>2005, 125 VESPA PX -290402-

	P2R reference	65380
	Maker reference	0155585

015558 - VIS

	P2R reference	81410
	Maker reference	580075

580075 - TUYAU R!NIFLARD

	P2R reference	75617
	Maker reference	1B000570

LOCK CYLINDER SET "PIAGGIO GENUINE PART" 50 VESPA PRIMAVERA, SPRINT -1B000570-

	P2R reference
	Maker reference	294163

DIODE

	P2R reference	66301
	Maker reference	297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

	P2R reference	77731
	Maker reference	2940165

VOLTAGE REGULATOR- (OLD MOUNT - 5 PLUGS) "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, NRG, SFERA 1995>2002/GILERA 50 STALKER 1997>2000 -2940165-

	P2R reference	67191
	Maker reference	58096R

VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 50 ZIP 2009>, TYPHOON 2006>, FLY 2005>, LIBERTY 2006>, NRG POWER 2005>VESPA LX 2005>, VESPA-S 2007>/GILERA 50 STALKER 2005>, RUNNER 2005> -58096R

	P2R reference
	Maker reference	294836

COMMUTATEUR

	P2R reference	198215
	Maker reference	643133

1D002436 - COMMUTATEUR A CLE

	P2R reference	198215
	Maker reference	1D002436

1D002436 - COMMUTATEUR A CLE

	P2R reference	65380
	Maker reference	0155585

015558 - VIS

	P2R reference	66304
	Maker reference	1B002607

LOCK BODY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -1B002607

	P2R reference	63777
	Maker reference	0030565

003056 - RONDELLE

	P2R reference	154072
	Maker reference	298903

LOCK BLOCK "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125 VESPA GTS/GILERA 50 RUNNER/APRILIA 50 SR -1B006291-

	P2R reference	65416
	Maker reference	0164065

016406 - RONDELLE S01640600

	P2R reference	66008
	Maker reference	253937

KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -253937

	P2R reference	65668
	Maker reference	0803415

HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341

	P2R reference	68522
	Maker reference	825186

SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE 50CC 2 STROKE RANGE -825186-

	P2R reference	74563
	Maker reference	114164

114164 - CAPUCHON

	P2R reference	77566
	Maker reference	288633

288633 - COLLIER

	P2R reference	65966
	Maker reference	231571

231571 - CAPUCHON

	P2R reference	85535
	Maker reference	638678

IGNITION COIL - ELECTRONIC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF OLDER SCOOTERS 1995>2002 -638678-

	P2R reference	67190
	Maker reference	58095R

IGNITION COIL "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE, VESPA LX 2 STROKE, VESPA-S 2 STROKE/APRILIA 50 CITY 2 STROKE, SR, SCARABEO 2 STROKE/GILERA 50 DNA, STALKER, RUNNER -58095R

	P2R reference	65428
	Maker reference	0166865

WASHER (5,2X18X1,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -016686

	P2R reference	65984
	Maker reference	241937

241937 - ECROU

	P2R reference	66228
	Maker reference	289575

289575 - VIS
