Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

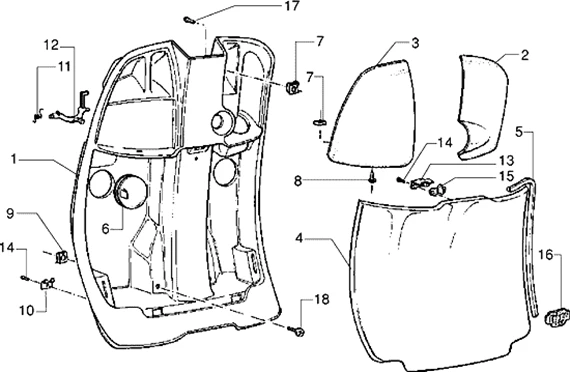

Châssis : T29 COFFRE À L'AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T29.PNG)
1 |
CM0036025018 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
COFFRE 331 |
||||||
|
1 |
Coffre |
||||||
|
1 |
CM0036025022 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM0036025025 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM0036025059 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM0036025060 - COFFRE AVT 336 More informationQuantity required : 1 |
||||||
|
1 |
Coffre |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/6/2/img/94962.jpg)
1 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 50 VESPA ET2, 125 VESPA ET4 1998>2004 -CM0036025- More informationQuantity required : 1 |
||||||
|
1 |
CM00360250B2 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM00360250D1 - COFFRE AVT 251 More informationQuantity required : 1 |
||||||
|
1 |
CM00360250F1 - COFFRE AVT 523 More informationQuantity required : 1 |
||||||
|
2 |
297277 - COTE COFFRE AV DROIT More informationQuantity required : 1 |
||||||
|
3 |
297276 - COTE COFFRE AV GAUCH More informationQuantity required : 1 |
||||||
|
4 |
8212005 - PORTE COFFRE AV BRUT More informationQuantity required : 1 |
||||||
|
4 |
8212005018 - PORTE More informationQuantity required : 1 |
||||||
|
4 |
ABATTANT MAR 131 |
||||||
|
4 |
8212005060 - PORTE 366 More informationQuantity required : 1 |
||||||
|
4 |
8212005066 - PORTE 913 More informationQuantity required : 1 |
||||||
|
4 |
8212005087 - ABATTANT 724 More informationQuantity required : 1 |
||||||
|
4 |
8212005090 - PORTE COFFRE More informationQuantity required : 1 |
||||||
|
4 |
8212005095 - ABATTANT More informationQuantity required : 1 |
||||||
|
4 |
82120050B2 - PORTE PERLE More informationQuantity required : 1 |
||||||
|
4 |
82120050D1 - PORTE COFFRE AV BLEU COBALT More informationQuantity required : 1 |
||||||
|
4 |
82120050F1 - PORTE 523 More informationQuantity required : 1 |
||||||
|
4 |
8212195 - PORTE COFFRE AV V331 More informationQuantity required : 1 |
||||||
|
4 |
ABATTANA 848 |
||||||
|
4 |
PORTE COFFRE à GANTS ET4 216 bleu |
||||||
|
4 |
8212235 - PORTELLO ** More informationQuantity required : 1 |
||||||
|
4 |
ABATTANT 734 |
||||||
|
4 |
8212775 - PORTE COFF AV BL 734 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/8/img/66298.jpg)
5 |
FRONT BOOT DOOR GASKET "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, VESPA SPRINT, 125-250-500 X9, BEVERLY -297275- More informationQuantity required : 1 |
||||||
|
6 |
294067 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
8 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/2/img/66022.jpg)
10 |
DOOR FIXING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -257614- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/3/img/66023.jpg)
11 |
GLOVE BOX OPENING LEVER SPRING "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, VESPA LX -257617- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/1/img/66281.jpg)
12 |
HOOK - FOR FRONT TRAPDOOR "PIAGGIO GENUINE PART" 125 FLY -295528- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/2/img/66002.jpg)
13 |
DOOR CLOSING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -252420 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
14 |
268596 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/9/1/img/67091.jpg)
15 |
TRAPDOOR PLATE "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, VESPA LX -573057 More informationQuantity required : 1 |
||||||
|
16 |
DECAL- ON FRONT BOOT - "PIAGGIO GENUINE PART" VESPA 125 ET4 -577125- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
17 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
18 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 3 |
