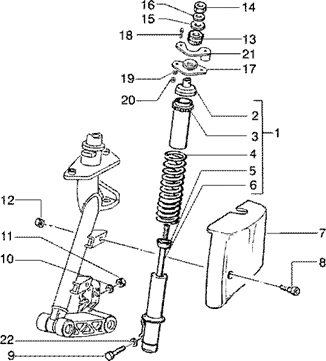

Vehicle Exploded View - VESPA VESPA ET4 125 Leader 1998-2005 VESPA

Suspensions-roues : T35 COUVERTURE AMORTISSEUR AV.
Couverture amortisseur av.
Search
FRONT SHOCK ABSORBER "PIAGGIO GENUINE PART" 50 ZIP 2000>VESPA ET2, ET4 -598922-

1
P2R reference P2R reference 82456
Maker reference Maker reference 598922

FRONT SHOCK ABSORBER "PIAGGIO GENUINE PART" 50 ZIP 2000>VESPA ET2, ET4 -598922-

More information

Quantity required : 1

562427 - DISQUE

2
P2R reference P2R reference 79853
Maker reference Maker reference 562427

562427 - DISQUE

More information

Quantity required : 1

GUIDE

3
P2R reference P2R reference
Maker reference Maker reference 267837

GUIDE

RESSORT

4
P2R reference P2R reference
Maker reference Maker reference 274722

RESSORT

ENTRETOISE

5
P2R reference P2R reference
Maker reference Maker reference 272492

ENTRETOISE

561756 - AMORTISSEUR AVT

6
P2R reference P2R reference 79802
Maker reference Maker reference 561756

561756 - AMORTISSEUR AVT

More information

Quantity required : 1

7
P2R reference P2R reference
Maker reference Maker reference 82170000P15

82170000AA - CACHE AMORTISS AV ET2/4

7
P2R reference P2R reference 92596
Maker reference Maker reference 82170000AA

82170000AA - CACHE AMORTISS AV ET2/4

More information

Quantity required : 1

82170000D9 - CACHE AMORTISS AV ET2/4

7
P2R reference P2R reference 92597
Maker reference Maker reference 82170000D9

82170000D9 - CACHE AMORTISS AV ET2/4

More information

Quantity required : 1

8217005 - CACHE FOURCHE BRUT

7
P2R reference P2R reference 92600
Maker reference Maker reference 8217005

8217005 - CACHE FOURCHE BRUT

More information

Quantity required : 1

CACHE AMORTISS AV

7
P2R reference P2R reference
Maker reference Maker reference 82170000V8

CACHE AMORTISS AV

82170000V9 - CACHE AMORTISS AV

7
P2R reference P2R reference 92598
Maker reference Maker reference 82170000V9

82170000V9 - CACHE AMORTISS AV

More information

Quantity required : 1

82170000VA - CACHE AMORTISS AV

7
P2R reference P2R reference 92599
Maker reference Maker reference 82170000VA

82170000VA - CACHE AMORTISS AV

More information

Quantity required : 1

8217005060 - CACHE FOURCHE 336

7
P2R reference P2R reference 92602
Maker reference Maker reference 8217005060

8217005060 - CACHE FOURCHE 336

More information

Quantity required : 1

8217005087 - PLAS. ENG. INSP. DOOR ATT.MAINBODYFAIRIN

7
P2R reference P2R reference 92604
Maker reference Maker reference 8217005087

8217005087 - PLAS. ENG. INSP. DOOR ATT.MAINBODYFAIRIN

More information

Quantity required : 1

8217005090 - CACHE AMORTISS AV ET2/4 94 NOIR

7
P2R reference P2R reference 92605
Maker reference Maker reference 8217005090

8217005090 - CACHE AMORTISS AV ET2/4 94 NOIR

More information

Quantity required : 1

8217005095 - CACHE AMORTISS AV ET2/4 729 GRIS

7
P2R reference P2R reference 92606
Maker reference Maker reference 8217005095

8217005095 - CACHE AMORTISS AV ET2/4 729 GRIS

More information

Quantity required : 1

82170050A7 - CACHE FOURCHE

7
P2R reference P2R reference 92607
Maker reference Maker reference 82170050A7

82170050A7 - CACHE FOURCHE

More information

Quantity required : 1

82170050D1 - CACHE FOURCHE 251

7
P2R reference P2R reference 92609
Maker reference Maker reference 82170050D1

82170050D1 - CACHE FOURCHE 251

More information

Quantity required : 1

82170050F1 - CACHE FOURCHE 523

7
P2R reference P2R reference 92610
Maker reference Maker reference 82170050F1

82170050F1 - CACHE FOURCHE 523

More information

Quantity required : 1

82170050R2 - COP.SOSP. **

7
P2R reference P2R reference 92611
Maker reference Maker reference 82170050R2

82170050R2 - COP.SOSP. **

More information

Quantity required : 1

COUVERCLE

7
P2R reference P2R reference
Maker reference Maker reference 82170050R3

COUVERCLE

82170050R7 - CACHE FOURCHE

7
P2R reference P2R reference 92612
Maker reference Maker reference 82170050R7

82170050R7 - CACHE FOURCHE

More information

Quantity required : 1

CACHE FOURCHE

7
P2R reference P2R reference
Maker reference Maker reference 82170050V6

CACHE FOURCHE

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

8
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

More information

Quantity required : 1

SCREW - (8x40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104-

9
P2R reference P2R reference 65747
Maker reference Maker reference 149104

SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104-

More information

Quantity required : 2

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

10
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 2

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

11
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 2

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

12
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

More information

Quantity required : 1

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" 50 ZIP, ET2, 125 ET4/GILERA 50 STALKER, 125 RUNNER -216209-

13
P2R reference P2R reference 76430
Maker reference Maker reference 216209

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" 50 ZIP, ET2, 125 ET4/GILERA 50 STALKER, 125 RUNNER -216209-

More information

Quantity required : 2

021210 - ECROU EX 319438 + S02121000

14
P2R reference P2R reference 73964
Maker reference Maker reference 0212105

021210 - ECROU EX 319438 + S02121000

More information

Quantity required : 1

174088 - RONDELLE

15
P2R reference P2R reference 74967
Maker reference Maker reference 174088

174088 - RONDELLE

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

16
P2R reference P2R reference 65346
Maker reference Maker reference 0125355

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

More information

Quantity required : 1

562305 - SUPPORT

17
P2R reference P2R reference 79840
Maker reference Maker reference 562305

562305 - SUPPORT

More information

Quantity required : 1

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

18
P2R reference P2R reference
Maker reference Maker reference 00000031120

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

19
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 2

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

20
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 2

563872 - PATTES

21
P2R reference P2R reference 79976
Maker reference Maker reference 563872

563872 - PATTES

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

22
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

More information

Quantity required : 1
