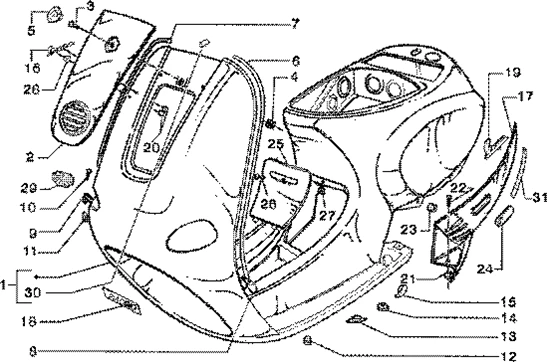

Vehicle Exploded View - VESPA VESPA ET4 150 Leader 1998-2005

	P2R reference
	Maker reference	5764556095

Chássis

	P2R reference
	Maker reference	57645560A7

CHASSIS

	P2R reference	80882
	Maker reference	57645560AA

57645560AA - CHASSIS

	P2R reference	80883
	Maker reference	57645560B2

57645560B2 - CHASSIS

	P2R reference	80885
	Maker reference	57645560D1

57645560D1 - CHASSIS

	P2R reference
	Maker reference	57645560D9

Chássis

	P2R reference	80886
	Maker reference	57645560F1

57645560F1 - CHASSIS

	P2R reference	80887
	Maker reference	57645560F2

57645560F2 - CHASSIS

	P2R reference
	Maker reference	57645560P1

Chássis

	P2R reference
	Maker reference	57645560R3

Chássis

	P2R reference	80889
	Maker reference	57645560R7

57645560R7 - CHASSIS

	P2R reference	80891
	Maker reference	57645560V6

57645560V6 - CHASSIS

	P2R reference	80892
	Maker reference	57645560V8

57645560V8 - CHASSIS

	P2R reference	80893
	Maker reference	57645560V9

57645560V9 - CHASSIS

	P2R reference	80894
	Maker reference	57645560VA

57645560VA - CHASSIS

	P2R reference
	Maker reference	57645550R2

Chássis

	P2R reference
	Maker reference	5764556060

CHASSIS ET4 VERT 336

	P2R reference	80877
	Maker reference	57645501

57645501 - CHASSIS

	P2R reference	80879
	Maker reference	5764556066

5764556066 - CHASSIS

	P2R reference	80880
	Maker reference	5764556087

5764556087 - CHASSIS

	P2R reference	80881
	Maker reference	5764556090

5764556090 - CHASSIS

	P2R reference	78846
	Maker reference	47220000AA

47220000AA - CACHE DIRECTION AV ET2/4 BLEU AURORA 422

	P2R reference	78851
	Maker reference	4722005

STEERING COVER- FRONT "PIAGGIO GENUINE PART" 50 ET2, 125 ET4 RAW TO BE PAINT -4722005-

	P2R reference	78848
	Maker reference	47220000F2

47220000F2 - COUVERCLE

	P2R reference	78849
	Maker reference	47220000V8

47220000V8 - CACHE DIRECTION AV ET2/4 BACCARAT 381

	P2R reference	78850
	Maker reference	47220000VA

47220000VA - COUVERCLE

	P2R reference	78853
	Maker reference	4722005060

4722005060 - CACHE DIRECTION AV ET2/4 VERT 336

	P2R reference	78854
	Maker reference	4722005090

4722005090 - CACHE DIRECTION AV ET2/4 NOIR BRILL 94

	P2R reference	78855
	Maker reference	4722005095

4722005095 - CACHE DIRECTION AV ET2/4 GRIS 729

	P2R reference	78856
	Maker reference	47220050A7

47220050A7 - CACHE DIRECTION AV ET2/4 GRIS PLAT 686

	P2R reference	78857
	Maker reference	47220050B2

47220050B2 - CACHE DIRECTION AV ET2/4 PERLE 693

	P2R reference	78859
	Maker reference	47220050D1

47220050D1 - CACHE DIRECTION AV ET2/4 BLEU 251

	P2R reference
	Maker reference	47220050R2

Cache-direction

	P2R reference	78862
	Maker reference	47220050V6

47220050V6 - CACHE DIRECTION

	P2R reference
	Maker reference	47220000V9

CACHE DIRECTION AV ET2/4 VERT PIST. 396

	P2R reference	66068
	Maker reference	267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

	P2R reference	65832
	Maker reference	199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

	P2R reference	67129
	Maker reference	576464

DECAL- "PIAGGIO GENUINE PART" 125 VESPA PX (VNX-VSX) -576464

	P2R reference	80176
	Maker reference	573001

573001 - BORDURE TABLIER G

	P2R reference	80177
	Maker reference	573002

573002 - BORDURE TABLIER D

	P2R reference	78090
	Maker reference	299964

CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

	P2R reference	78091
	Maker reference	299965

CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

	P2R reference	63854
	Maker reference	0084325

SCREW - -008432

	P2R reference	72923
	Maker reference	CM017405

CM017405 - PLAQUETTE

	P2R reference	78066
	Maker reference	299558

299558 - BOUCHON

	P2R reference	78065
	Maker reference	299557

299557 - BOUCHON

	P2R reference	78067
	Maker reference	299559

299559 - BOUCHON

	P2R reference	78051
	Maker reference	299250

299250 - BOUCHON

	P2R reference	89130
	Maker reference	656219

DECAL "VESPA" "PIAGGIO GENUINE PART" 50-125 VESPA LX 2006>, PRIMAVERA 2012>, VESPA-S 2007>, SPRINT 2014>, 125 VESPA GTS 2007>, PX 2014> -656219-

	P2R reference	92560
	Maker reference	8215005

8215005 - CARENAGE DROIT

	P2R reference
	Maker reference	82150000V8

CARTER LAT DROIT

	P2R reference
	Maker reference	82150000V9

CARTER LAT DROIT

	P2R reference	92560
	Maker reference	82150000VA

8215005 - CARENAGE DROIT

	P2R reference	92560
	Maker reference	8215005060

8215005 - CARENAGE DROIT

	P2R reference	92564
	Maker reference	8215005066

8215005066 - FLANC DRT 913

	P2R reference
	Maker reference	8215005087

flanc ard 724

	P2R reference
	Maker reference	82150050F1

FLANC DRT 523

	P2R reference
	Maker reference	82150050R2

PROTECTION

	P2R reference
	Maker reference	82150050R3

Carenage dr.

	P2R reference
	Maker reference	82150050R7

CARENAGE

	P2R reference	92566
	Maker reference	82150050V6

82150050V6 - CARENAGE

	P2R reference	92573
	Maker reference	82160000D9

82160000D9 - CARTER LAT GAUCH

	P2R reference	92574
	Maker reference	82160000V8

82160000V8 - TAPIS CENTRAL

	P2R reference	92575
	Maker reference	82160000V9

82160000V9 - TAPIS CENTRAL

	P2R reference	92576
	Maker reference	82160000VA

82160000VA - CARTER LAT GAUCH

	P2R reference	92580
	Maker reference	8216005066

8216005066 - FLANC G 913

	P2R reference	92581
	Maker reference	8216005087

8216005087 - CARRENAGE GAUCHE 724

	P2R reference	92577
	Maker reference	8216005090

8216005 - FLANC GAUCHE BRUT

	P2R reference	92583
	Maker reference	8216005095

8216005095 - CARENAGE GAUC

	P2R reference	92577
	Maker reference	8216005

8216005 - FLANC GAUCHE BRUT

	P2R reference	92586
	Maker reference	82160050D1

82160050D1 - FLANC G 251

	P2R reference	92587
	Maker reference	82160050F1

82160050F1 - FLANC G 523

	P2R reference	92588
	Maker reference	82160050R2

82160050R2 - PROTECTION

	P2R reference
	Maker reference	82160050R3

Carenage gau.

	P2R reference	92589
	Maker reference	82160050R7

82160050R7 - CARENAGE

	P2R reference
	Maker reference	82160050V6

CARENAGE

	P2R reference	94879
	Maker reference	CM000402000N

CM000402000N - DECALQ NOIR

	P2R reference	94880
	Maker reference	CM0004020036

CM0004020036 - MONOG PIAGGIO CHAMPA

	P2R reference	89131
	Maker reference	656220

DECAL "VESPA" "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 50-125 VESPA -656220

	P2R reference	63846
	Maker reference	0081085

008108 - PLAQUE

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	67113
	Maker reference	575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

	P2R reference	65850
	Maker reference	1B000888

SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888-

	P2R reference	139413
	Maker reference	58231R5

SIDE REFLECTOR- "PIAGGIO GENUINE PART" 50-125 ZIP, VESPA LX, LIBERTY, 125-250-400-500 MP3 -58231R5-

	P2R reference	78830
	Maker reference	4721005

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PARTS" VESPA 50 ET2, 125 ET4 BRUT A PEINDRE -4721005-

	P2R reference	78830
	Maker reference	47210000D9

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PARTS" VESPA 50 ET2, 125 ET4 BRUT A PEINDRE -4721005-

	P2R reference	78829
	Maker reference	47210000VA

47210000VA - COUVERCLE TABLIER

	P2R reference	78832
	Maker reference	4721005090

4721005090 - TRAPPE DE VISITE ET2/4 NOIR BRILLANT 94

	P2R reference	78833
	Maker reference	4721005095

4721005095 - TRAPPE DE VISITE ET2/4 GRIS 729

	P2R reference	78834
	Maker reference	47210050A7

TRAPDOOR ET2/4 - PLATINIUM GREY 686 -47210050A7-

	P2R reference	78835
	Maker reference	47210050B2

47210050B2 - TRAPPE DE VISITE ET2/4 PERLE 693

	P2R reference	78838
	Maker reference	47210050F1

47210050F1 - PORTE BAT 523

	P2R reference
	Maker reference	47210050R2

Portillon

	P2R reference
	Maker reference	47210050R3

Abattant

	P2R reference	78840
	Maker reference	47210050R7

47210050R7 - TRAPPE DE VISITE ET2/4 ROUGE DRAGON 894

	P2R reference
	Maker reference	47210050V6

ABATTANT

	P2R reference
	Maker reference	47210000AA

COUVERCLE TABLIER

	P2R reference
	Maker reference	47210000V8

COUVERCLE TABLIER

	P2R reference
	Maker reference	47210000V9

TRAPPE DE VISITE ET2/4 VERT PISTACHE 39

	P2R reference	65403
	Maker reference	0159115

015911 - VIS S01591100

	P2R reference	72924
	Maker reference	CM017408

NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408-

	P2R reference	77348
	Maker reference	271710

271710 - ENTRETOISE

	P2R reference	80804
	Maker reference	576250

576250 - PLAQUETTE

	P2R reference	66306
	Maker reference	298604

LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604-

	P2R reference	80706
	Maker reference	575887

575887 - JOINT
