Vehicle Exploded View - VESPA VESPA GTS 300 Super 4T 4V ie ABS E4 2016-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

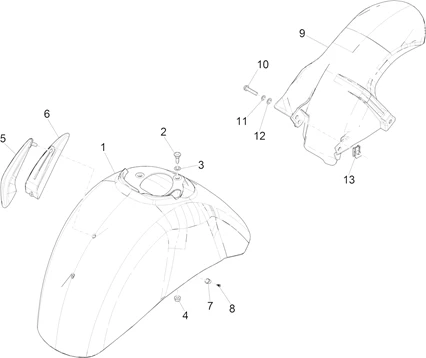

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/802/Vespa_GTS_300_Super_4T_4V_ie_ABS_E4_2016-2018_02.33.png)
1 |
65102900T8 - GARDE BOUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/1/3/img/87213.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2007> RED 894 -65102900R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/4/4/9/img/140449.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2007> BLACK 94 -6510295090 More informationQuantity required : 1 |
||||||
|
1 |
65102900Q7 - GARDE BOUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/8/4/img/87184.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2006> RAW TO BE PAINTED -651029 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/2/1/2/img/153212.jpg)
1 |
65102900NV - GARDE BOUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/4/4/2/img/140442.jpg)
1 |
65102900HQ - GARDE-BOUE More informationQuantity required : 1 |
||||||
|
1 |
65102900L7 - GARDE-BOUE More informationQuantity required : 1 |
||||||
|
1 |
65102900YR5 - GARDE BOUE AV. More informationQuantity required : 1 |
||||||
|
1 |
65102900VU - GARDE BOUE AV. More informationQuantity required : 1 |
||||||
|
1 |
65102900HA - GARDE BOUE More informationQuantity required : 1 |
||||||
|
1 |
65102900MD - GARDE BOUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/1/6/img/87216.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2007> BLACK 98/A -65102900XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/9/2/img/87192.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2008> WHITE 544 -65102900BR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/1/5/img/86815.jpg)
2 |
648294 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
4 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/2/1/3/img/153213.jpg)
5 |
CM2982025 - CRETE GARDE-BOUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/1/8/4/img/109184.jpg)
5 |
FRONT MUDGUARD CREST "PIAGGIO GENUINE PART" 125-300 VESPA GTS 2009> -1B002582 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/5/7/img/87157.jpg)
6 |
FRONT MUDGUARD CREST "PIAGGIO GENUINE PART" 125-250-300 GTS 2009>2018 -650755 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/7/2/img/75172.jpg)
7 |
CAP FOR MUDGUARD "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS VESPA -192598 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
8 |
SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727 More informationQuantity required : 2 |
||||||
|
9 |
REAR MUDGUARD "PIAGGIO GENUINE PART" 125-250-300 VESOA GTS -1B001422- More informationQuantity required : 1 |
||||||
|
9 |
1B005489 - GARDE-BOUE AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
10 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
11 |
012533 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
12 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
