Vehicle Exploded View - VESPA VESPA GTS 300 Super HPE 4V ie ABS E4 2018-2020
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

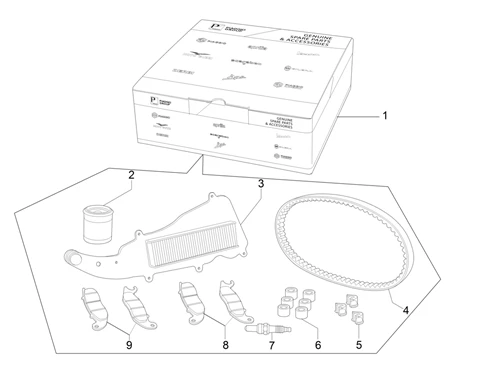

Maintenance : 07.01 COMPLETE WEAR AND MAINTENANCE KIT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/965/Vespa_GTS_300_Super_HPE_4V_ie_ABS_E4_2018-2020_07.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/8/2/7/img/172827.jpg)
1 |
1R000458 - KIT REVISION VESPA 300 HPE SUPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/4/9/img/210649.jpg)
2 |
FILTRE A HUILE MAXISCOOTER ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS -1A022356 More informationQuantity required : 1 |
||||||
|
2 |
FILTRE A HUILE MAXISCOOTER ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS -1A022356 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/7/4/img/157074.jpg)
3 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM - 125 X-EVO 2007>, MP3 2006>, VESPA GT 2004>, VESPA GTS 2007>, X8 2004>, 125 X9-EVO 2007>, 250 MP3 2006>, 300 MP3 2010> -8319970P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/2/7/img/156027.jpg)
4 |
BELT "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019>, GTS 2018> VESPA GTV 2019> -1A009598 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/2/2/img/156022.jpg)
5 |
1A012092 - DOIGT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/2/3/img/156023.jpg)
6 |
VARIATOR ROLLER "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019>, VESPA GTS HPE 2019> -CM294902- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/4/3/3/img/157433.jpg)
7 |
SPARK PLUG NGK MR7BI-8 "PIAGGIO GENUINE PART" 300 MP3 HPE 2019>, 500 MP3 MAXI 2018>, 300 VESPA GTS HPE 2018> -1A013926 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/1/8/img/90318.jpg)
8 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125-350-500 X10 FRONTANT GAUCHE, 125-300 VESPA GTS ABS FRONT LEFT (PAIR) -668021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/8/img/68008.jpg)
9 |
REAR BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2007> (PAIR) -647161 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
