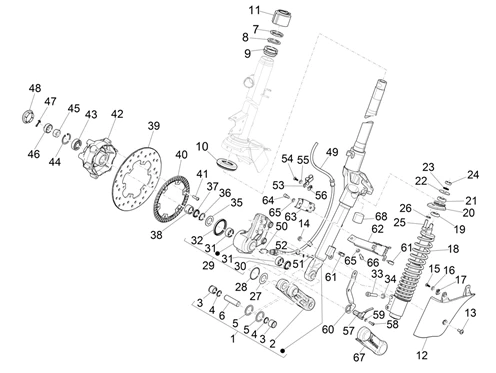

Vehicle Exploded View - VESPA VESPA GTV 300 SEI GIORNI ie E4 ABS 2017 (EMEA)

	P2R reference	140180
	Maker reference	1C0025285

FRONT FORK "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -1C0025285-

	P2R reference	86836
	Maker reference	6483975

FRONT SUSPENSION ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-300 YOURBAN -6483975-

	P2R reference	75262
	Maker reference	198513

ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513-

	P2R reference	65707
	Maker reference	119219

GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219-

	P2R reference	63834
	Maker reference	0067315

GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731-

	P2R reference	65779
	Maker reference	177451

ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451-

	P2R reference	65339
	Maker reference	01110945

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094-

	P2R reference	67264
	Maker reference	582787

582787 - RONDELLE.

	P2R reference	68161
	Maker reference	650693

UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345

	P2R reference	87018
	Maker reference	650075

STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545

	P2R reference	87018
	Maker reference	65007545

STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545

	P2R reference	81825
	Maker reference	582828

582828 - BAGUE SUP FOURCHE

	P2R reference	127500
	Maker reference	1C001153

FRONT DAMPER PROTECTION "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 VESPA GTS -1C001153-

	P2R reference	73366
	Maker reference	CM179301

CM179301 - VIS

	P2R reference	66187
	Maker reference	288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

	P2R reference	66035
	Maker reference	259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

	P2R reference	65342
	Maker reference	0125285

012528 - RONDELLE S01252800

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	80093
	Maker reference	56452R

FRONT SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -56452R

	P2R reference	65770
	Maker reference	174874

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER +MAXISCOOTER -174874-

	P2R reference	83003
	Maker reference	601556

601556 - SUPPORT

	P2R reference	74966
	Maker reference	174085

FRONT SUSPENSION ARM BUFFER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085-

	P2R reference	74967
	Maker reference	174088

174088 - RONDELLE

	P2R reference	65346
	Maker reference	0125355

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

	P2R reference	73964
	Maker reference	0212105

021210 - ECROU EX 319438 + S02121000

	P2R reference	67332
	Maker reference	597150

SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150-

	P2R reference	65418
	Maker reference	0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

	P2R reference	75024
	Maker reference	177445

177445 - ENTRETOISE

	P2R reference	65776
	Maker reference	177408

177408 - BAGUE

	P2R reference	82295
	Maker reference	597758

597758 - SUPPORT PINCE FREIN

	P2R reference	142375
	Maker reference	1C001969

1C001969 - BOURRAGE

	P2R reference	75022
	Maker reference	177436
	Replaced by référence 198561

ROLLER BEARING FOR DRAWN CAP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -177436

	P2R reference	75025
	Maker reference	177494

BUSHING FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177494-

	P2R reference	65747
	Maker reference	149104

SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104-

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

	P2R reference	75021
	Maker reference	177414

177414 - ENTRETOISE

	P2R reference	63816
	Maker reference	0064225

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422-

	P2R reference	75023
	Maker reference	177443

FRONT WHEEL GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177443

	P2R reference	65778
	Maker reference	177442

ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442-

	P2R reference	67082
	Maker reference	56484R

FRONT BRAKE DISC "PIAGGIO GENUINE PART" 50 NRG, 125 LIBERTY, FLY, LIBERTY, 125-250-300 VESPA GTS/GILERA 50-125 RUNNER -56484R

	P2R reference	151238
	Maker reference	1C0011276

1C0011276 - CODEUR COMPTEUR KM

	P2R reference	68436
	Maker reference	667152

BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152-

	P2R reference	149276
	Maker reference	1C001222

1C001222 - MOYEU AVT

	P2R reference	75030
	Maker reference	177610

FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177610-

	P2R reference	63823
	Maker reference	0066355

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635-

	P2R reference	65601
	Maker reference	0211145

021114 - ECROU S02111400

	P2R reference	75029
	Maker reference	177609

CAP - FOR WHEEL "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER -177609-

	P2R reference	65355
	Maker reference	0127895

REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 -

	P2R reference	76015
	Maker reference	1C000523

COVER - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+MAXISCOOTER - CHROME -1C000523

	P2R reference	149277
	Maker reference	1C001253

1C001253 - TRANSMISSION COMPTEUR

	P2R reference	86786
	Maker reference	648025

648025 - PIGNON COMPTEUR

	P2R reference	65634
	Maker reference	0310585

031058 - VIS S03105800

	P2R reference	63840
	Maker reference	0069755

006975 - RONDELLE S00697500

	P2R reference	68392
	Maker reference	666047

666047 - COLLIER

	P2R reference	66035
	Maker reference	259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

	P2R reference	65425
	Maker reference	0166705

016670 - RONDELLE S01667000

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	198063
	Maker reference	1D003747

CAPTEUR ABS ORIGINE PIAGGIO 125-300 VESPA GTS 2009>, 300 VESPA GTV 2009>, 125 VESPA SPRINT 2014>2015, VESPA 946 2013>/MOTO-GUZZI V7 RACER 2015>2016 -1D003747

	P2R reference	198063
	Maker reference	1D0011175

CAPTEUR ABS ORIGINE PIAGGIO 125-300 VESPA GTS 2009>, 300 VESPA GTV 2009>, 125 VESPA SPRINT 2014>2015, VESPA 946 2013>/MOTO-GUZZI V7 RACER 2015>2016 -1D003747

	P2R reference	70728
	Maker reference	880285

880285 - VIS

	P2R reference	63840
	Maker reference	0069755

006975 - RONDELLE S00697500

	P2R reference	149289
	Maker reference	1C002989

1C002989 - RESSORT SUPPORT

	P2R reference	65967
	Maker reference	231590

231590 - CLIPS

	P2R reference	65967
	Maker reference	231590

231590 - CLIPS

	P2R reference	146447
	Maker reference	1C001827

1C001827 - SUPPORT

	P2R reference	146448
	Maker reference	1C001828

1C001828 - SUPPORT

	P2R reference	110283
	Maker reference	239687

239687 - VIS

	P2R reference	63841
	Maker reference	0069765

006976 - RONDELLE S00697600

	P2R reference	68493
	Maker reference	709099

709099 - VIS

	P2R reference	79781
	Maker reference	561433

FRONT SUSPENSION ARM COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 GTS -561433-

	P2R reference	67462
	Maker reference	601026

601026 - BOUCHON
