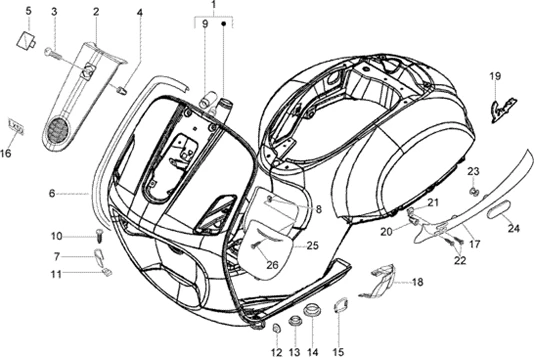

Vehicle Exploded View - VESPA VESPA LX 50 2T 1998-2005

	P2R reference	168716
	Maker reference	1B00478701

FRAME - RAW -1B00478701-

	P2R reference	168716
	Maker reference	78120801

FRAME - RAW -1B00478701-

	P2R reference	92237
	Maker reference	78120850R7

78120850R7 - COQUE

	P2R reference	84711
	Maker reference	655964

STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX RAW TO BE PAINT -655964-

	P2R reference	84707
	Maker reference	62290760AA

62290760AA - CACHE DIRECTION AV

	P2R reference	84709
	Maker reference	62290760BM

62290760BM - CACHE DIRECTION AV

	P2R reference	89029
	Maker reference	65596400ND
	Replaced by référence 84711

STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX BLACK 79/A -65596400ND-

	P2R reference	89033
	Maker reference	65596400R7

65596400R7 - COUVERCLE

	P2R reference	66068
	Maker reference	267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

	P2R reference	65832
	Maker reference	199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

	P2R reference	67129
	Maker reference	576464

DECAL- "PIAGGIO GENUINE PART" 125 VESPA PX (VNX-VSX) -576464

	P2R reference	84569
	Maker reference	622187

FRONT FAIRING EDGE-LEFT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622187

	P2R reference	84570
	Maker reference	622188

FRONT FAIRING EDGE-RIGHT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622188-

	P2R reference	78090
	Maker reference	299964

CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

	P2R reference	78091
	Maker reference	299965

CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965-

	P2R reference	72924
	Maker reference	CM017408

NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408-

	P2R reference	66306
	Maker reference	298604

LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604-

	P2R reference	63854
	Maker reference	0084325

SCREW - -008432

	P2R reference	72923
	Maker reference	CM017405

CM017405 - PLAQUETTE

	P2R reference	78066
	Maker reference	299558

299558 - BOUCHON

	P2R reference	78065
	Maker reference	299557

299557 - BOUCHON

	P2R reference	78067
	Maker reference	299559

299559 - BOUCHON

	P2R reference	83684
	Maker reference	620556

620556 - BOUCHON

	P2R reference	89132
	Maker reference	656221

DECAL "LX50" "PIAGGIO GENUINE PART" 50 VESPA LX -656221-

	P2R reference	84316
	Maker reference	62212740F3

62212740F3 - TAPIS CENTRAL

	P2R reference	84362
	Maker reference	62212840F3

62212840F3 - CARENAGE DROIT

	P2R reference	84696
	Maker reference	622901000L

622901000L - CARENAGE

	P2R reference	84697
	Maker reference	622901000P

REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 50 VESPA LX 2006> -622901000P

	P2R reference	84698
	Maker reference	622902000L

622902000L - CARTER DX

	P2R reference	84699
	Maker reference	622902000P

REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 50 VESPA LX 2006> -622902000P

	P2R reference	84392
	Maker reference	62212940AA

62212940AA - COUVERTURE SPOILER GAU.

	P2R reference	84396
	Maker reference	62212940BM

62212940BM - COUVERTURE SPOILER GAU.

	P2R reference	84405
	Maker reference	62212940F2

62212940F2 - COUVERTURE SPOILER GAU.

	P2R reference	84406
	Maker reference	62212940F3

62212940F3 - COUVERTURE SPOILER GAU.

	P2R reference	84414
	Maker reference	62212940ND

LEFT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S BLACK 79/A -62212940ND-

	P2R reference	84418
	Maker reference	62212940R7

LEFT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S RED 894 -6221294R7D-

	P2R reference	84439
	Maker reference	62213040AA

62213040AA - COUVERTURE SPOILER DR

	P2R reference	84443
	Maker reference	62213040BM

62213040BM - COUVERTURE SPOILER DR

	P2R reference	84452
	Maker reference	62213040F2

RIGHT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S GREY 738/A -62213040F2-

	P2R reference	84453
	Maker reference	62213040F3

62213040F3 - COUVERTURE SPOILER DR

	P2R reference	84461
	Maker reference	62213040ND

62213040ND - COUVERTURE SPOILER DR

	P2R reference	84465
	Maker reference	62213040R7

RIGHT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S RED 894 -62213040R7-

	P2R reference	89131
	Maker reference	656220

DECAL "VESPA" "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 50-125 VESPA -656220

	P2R reference	65832
	Maker reference	199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	66035
	Maker reference	259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

	P2R reference	65850
	Maker reference	1B000888

SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888-

	P2R reference	139413
	Maker reference	58231R5

SIDE REFLECTOR- "PIAGGIO GENUINE PART" 50-125 ZIP, VESPA LX, LIBERTY, 125-250-400-500 MP3 -58231R5-

	P2R reference	84510
	Maker reference	62213660AA

62213660AA - ABATTANT AVT

	P2R reference	84512
	Maker reference	62213660BM

62213660BM - ABATTANT AVT

	P2R reference	84514
	Maker reference	62213660F2

62213660F2 - ABATTANT AVT

	P2R reference	84515
	Maker reference	62213660F3

62213660F3 - ABATTANT AVT

	P2R reference	84516
	Maker reference	62213660ND

62213660ND - ABATTANT AVT

	P2R reference	84505
	Maker reference	62213650R7

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PART" 50-125 VESPA LX RED 584 -62213650R7

	P2R reference	65403
	Maker reference	0159115

015911 - VIS S01591100
